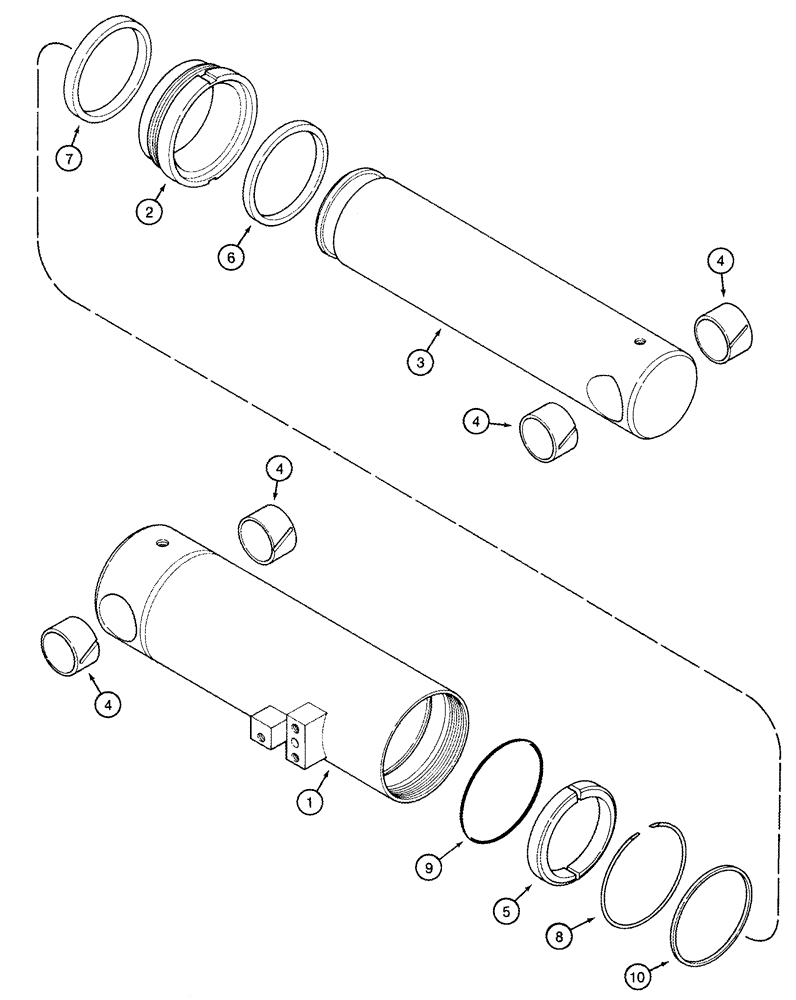

Запчасти Case IH CPX620 (08-29) - DRUM LIFT CYLINDER ASSEMBLY - BSN Y6T011501 (07) - HYDRAULICS

107784A1

CYLINDER ASSY.

98 ID x 272 mm strk, Drum Lift, Inc. 1 - 10

2шт.

1

107838A1

TUBE

1шт.

2

1980306C1

GLAND

Cylinder

1шт.

3

1346283C1

PISTON ROD

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

Pivot

4шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

1980307C1

SEAL KIT

Seal, Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING, Backup

1шт.
