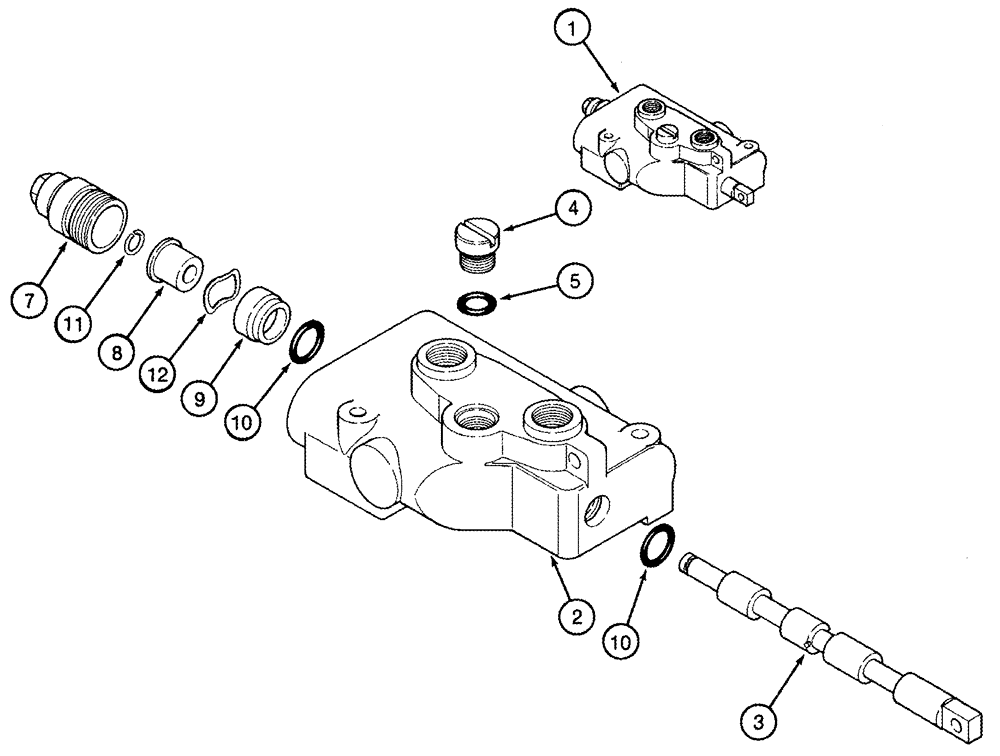

Запчасти Case IH CPX620 (08-27) - DRUM HEIGHT CONTROL VALVE - BSN Y6T011501 (07) - HYDRAULICS

1

120813A2

CONTROL VALVE

Drum Height, Inc. 2 - 12

2шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

21844C91

PLUG 1/2 NF, Inc. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

301221A1

REPAIR KIT

Spool Retainer, Inc. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

CAP

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

RING

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER

1шт.
