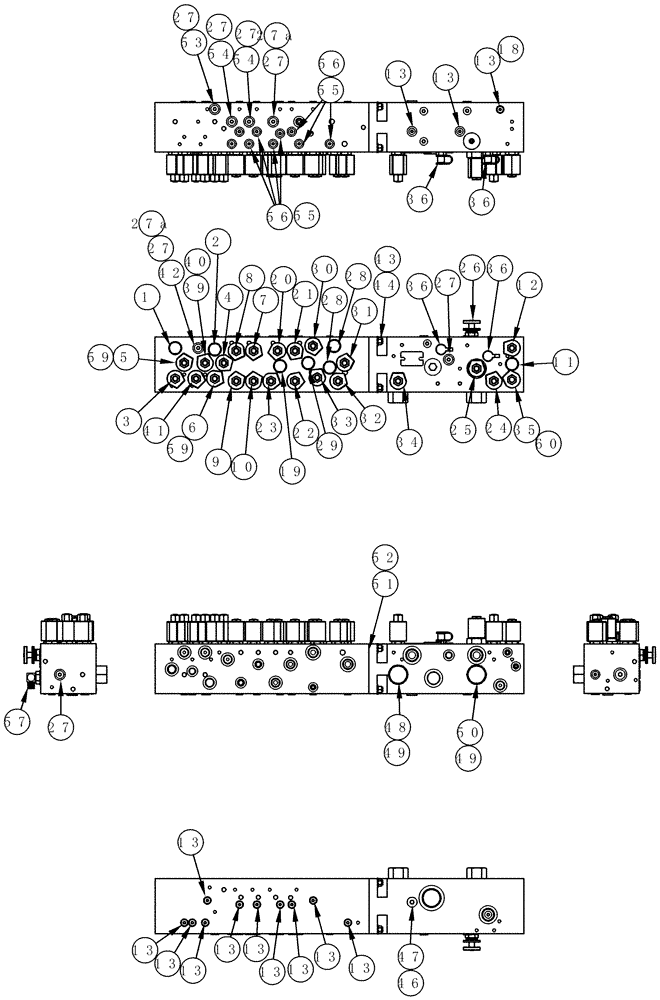

Запчасти Case IH CPX620 (08-22) - HYDRAULIC MANIFOLD VALVE (07) - HYDRAULICS

87445254

MANIFOLD VALVE

Inc. 1 - 36, 39-44, 46 - 58

1шт.

1

1346479C2

VALVE

Right Hand Drum Lift

1шт.

2

1346479C2

VALVE

Left Hand Drum Lift

1шт.

3

1288958C2

SOLENOID VALVE

3-Way, Right Hand Manual Drum Lift

1шт.

4

1288958C2

SOLENOID VALVE

3-Way, Left Hand Manual Drum Lift

1шт.

5

1288958C2

SOLENOID VALVE

3-Way, Right Hand Auto Drum Lift

1шт.

6

1288958C2

SOLENOID VALVE

3-Way, Left Hand Auto Drum Lift

1шт.

7

1288972C1

SOLENOID VALVE

2-Way, Drum Service Pressure, Spread

1шт.

8

1288972C1

SOLENOID VALVE

2-Way, Drum Service Pressure, Closure

1шт.

9

1288972C1

SOLENOID VALVE

2-Way, Drum Service Tank, Spread

1шт.

10

1288972C1

SOLENOID VALVE

2-Way, Drum Service Tank, Closure

1шт.

11

369660A1

VALVE

Drum Lube

1шт.

12

1288972C1

SOLENOID VALVE

2-Way, Drum Lube

1шт.

13

1341811C1

SPRING-CHECK

REPAIR KIT Sense Check, Inc. 14 - 18

13шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

Incl 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

BALL

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

19

149938C1

CHECK VALVE,7/8" - 14

Basket Door

1шт.

20

1288972C1

SOLENOID VALVE

2-Way, Basket Door Raise

1шт.

21

1288972C1

SOLENOID VALVE

2-Way, Basket Door Lower

1шт.

22

87252C1

SOLENOID VALVE

2-Way, Basket Door Raise

1шт.

23

87252C1

SOLENOID VALVE

2-Way, Basket Door Lower

1шт.

24

1288958C2

SOLENOID VALVE

3-Way, Basket Raise

1шт.

25

1288953C2

SOLENOID VALVE

2-Way, Basket Lower

1шт.

26

107420A1

VALVE PRESSURE RELIE

Basket Lower, Manual

1шт.

27

9625178

PLUG,9/16" - 18 ORB

Incl. 27A

7шт.

27a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

1542812C2

VALVE

Compactor Control

1шт.

29

1288953C2

SOLENOID VALVE

2-Way, Compactor

1шт.

30

1288972C1

SOLENOID VALVE

2-Way, Compactor Raise

1шт.

31

1288972C1

SOLENOID VALVE

2-Way, Compactor Lower

1шт.

32

87252C1

SOLENOID VALVE

2-Way, Compactor Raise Tank

1шт.

33

87252C1

SOLENOID VALVE

2-Way, Compactor Lower Tank

1шт.

34

1288958C2

SOLENOID VALVE

3-Way, Unloader Motor

1шт.

35

187849C1

SOLENOID VALVE

4-Way, Fan Clutch

1шт.

36

1541849C1

COUPLING

Diagnostic

2шт.

39

107467A2

ORIFICE

1шт.

40

1288958C2

SOLENOID VALVE

3-Way, Rockshaft Tiltback

1шт.

41

1288958C2

SOLENOID VALVE

3-Way, Rockshaft Rollout

1шт.

42

107419A1

PLUG

1шт.

43

95-11041

WASHER,3/8"

4шт.

44

29-106

NUT,3/8"-16, G8

4шт.

46

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 47

2шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

1340838C1

PILOT VALVE

3-Way, Unloader Motor

1шт.

49

107421A1

PLATE

2шт.

50

1340838C1

PILOT VALVE

3-Way, Basket Raise

1шт.

51

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

52

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

53

107418A1

PLUG

1шт.

54

107416A1

PLUG

2шт.

55

278548

PLUG,Hex, 7/16"-20 ORB

Incl 56

10шт.

56

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

57

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 58, 59

1шт.

58

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Note : See Figure 08-23 For Seal Replacement Kits

1шт.

59

1341807C1

SOLENOID

10 V

2шт.

60

1340843C1

SOLENOID,12V

12 V

21шт.
