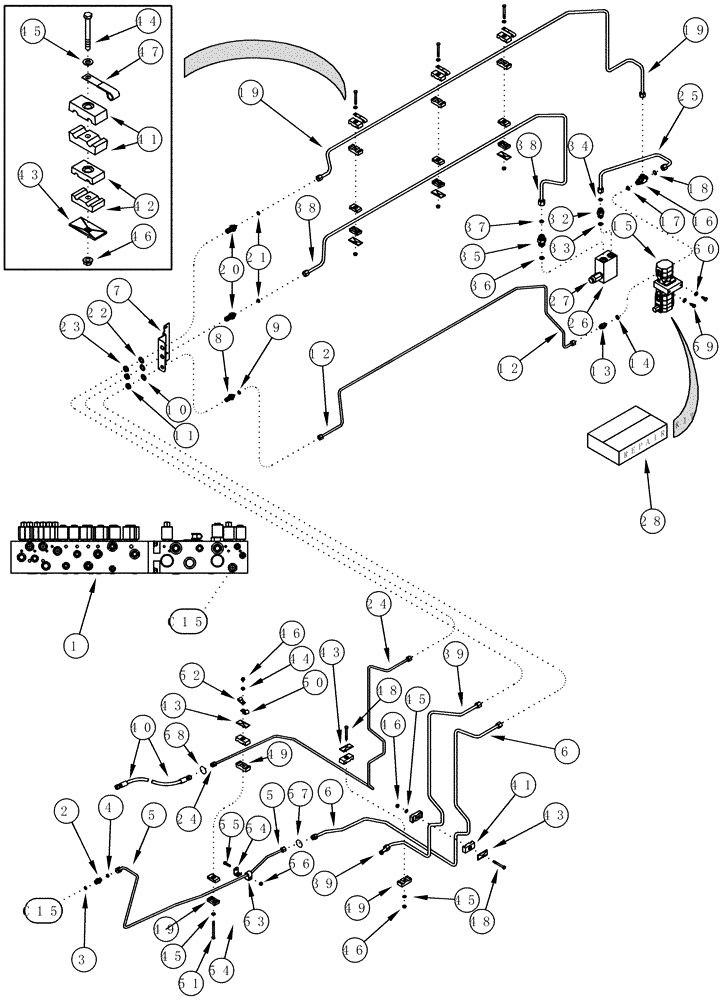

Запчасти Case IH CPX620 (08-20) - GREASE PUMP PLUMBING SYSTEM - DRUM LUBE / AIR SCREEN LUBE (07) - HYDRAULICS

1

87445254

MANIFOLD VALVE

1шт.

See Figure 08-22

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

390571A2

TUBE

Grease Pump, Supply Front

1шт.

6

389609A2

TUBE

Grease Pump, Supply Middle

1шт.

7

406284A1

SUPPORT TUBE

Tube Support, Left Hand

1шт.

8

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 9

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

1шт.

11

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

12

388104A1

TUBE

Grease Pump, Supply Rear

1шт.

13

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

11/16 fc x 3/4 Or, Inc. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

250706A2

LUBE PUMP

Grease

1шт.

250706A2R

REMAN-HYD PUMP

CPX620 (5/05-8/06)

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

Inc. 17, 18

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

388105A1

TUBE

Grease Pump, Return Rear

1шт.

20

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 21

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

495-11094

WASHER,7/8", SAE

2шт.

23

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

24

388108A2

TUBE

Grease Pump, Return Middle

1шт.

25

388102A1

TUBE

Air Screen Return

1шт.

26

327580A1

BY-PASS VALVE

Air Screen Lube, Inc. 27, 28

1шт.

27

295942A1

VALVE PRESSURE RELIE,3/4" - 14

Service With 28

1шт.

28

1542831C1

SEAL KIT

Inc. 29 - 31, Not Illustrated

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

RING, Backup

1шт.

32

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 33, 34

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

Inc. 36, 37

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

38

388103A1

TUBE

Air Screen Supply, Rear

1шт.

39

389608A2

TUBE

Air Screen Supply, Front

1шт.

40

407819A1

HOSE

635 mm (25 in), Air Screen Supply

1шт.

41

1546025C1

CLAMP

2 Piece

4шт.

42

1546024C1

CLAMP

2 Piece

4шт.

43

1347127C1

PLATE

4шт.

44

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

45

495-11034

WASHER,5/16", SAE

7шт.

46

425-285

FLANGE NUT,Flg, 5/16"-18, G5

6шт.

47

362126R1

CLIP

3шт.

48

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

2шт.

49

410573A1

CLAMP

2 Piece

3шт.

50

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

51

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

52

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

1шт.

53

236558A1

CLAMP

1шт.

54

445265A1

BRACKET

1шт.

56

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

57

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

60

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

55

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
