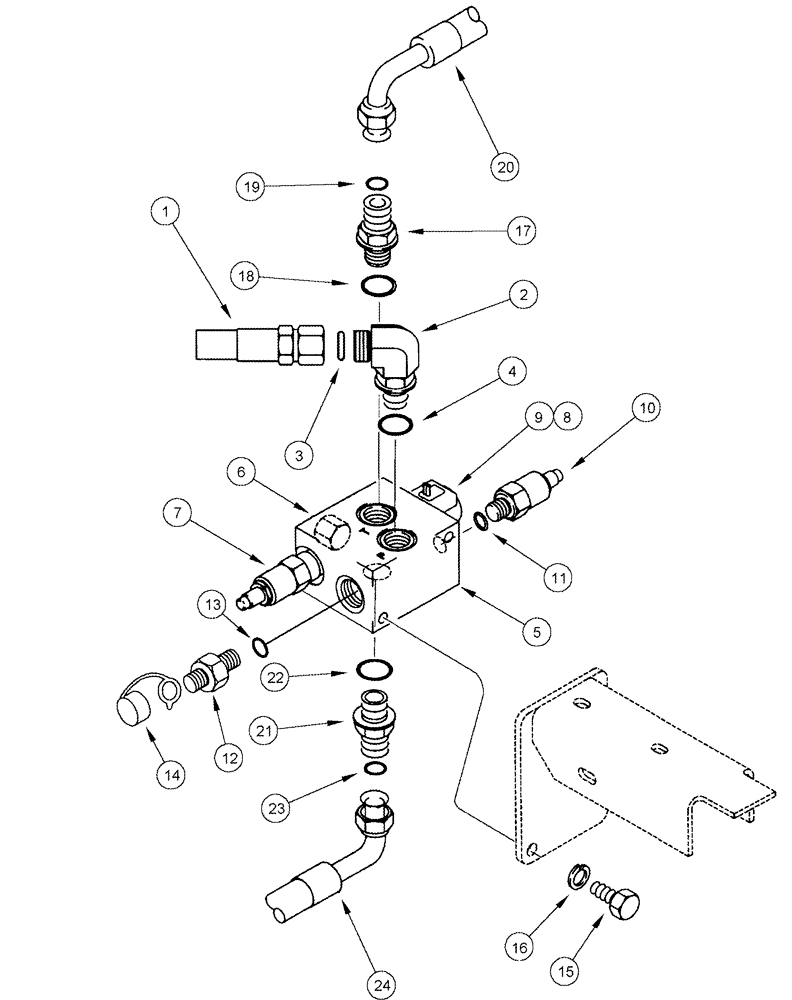

Запчасти Case IH CPX620 (08-11) - AUGER VALVE TO WATER SADDLE HYDRAULIC LINES (07) - HYDRAULICS

1

197726A1

HOSE

740 mm (29-1/8 in), Pump to Auger Control Valve Inlet

1шт.

See Figure 08-05

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 7, 8

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

190373A3

CONTROL VALVE

Inc. 6 - 9

1шт.

6

237125A1

ELEMENT,7/8" - 14

Directional, Order 237126A1

1шт.

237126A1

SEAL KIT

1шт.

7

237127A1

VALVE,3/4" - 16

Relief, Order 1542831C1

1шт.

1542831C1

SEAL KIT

Seal

1шт.

8

237128A1

VALVE

Solenoid, Order 237129A1

1шт.

237129A2

SEAL KIT

1шт.

9

237130A1

COIL

Solenoid, Auger

1шт.

10

194407A2

SWITCH

Auger Pressure, Compactor, Inc. 11

1шт.

1541849C1

COUPLING

Diagnostic, Inc. 12 - 14

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

H434163

DUST CAP

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 18, 19

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

197727A1

HOSE

985 mm (38-3/4 in), Return

1шт.

21

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 22, 23

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

197725A1

HOSE

2290 mm (90-1/8 in), Auger Control Valve To Bulkhead At Water Saddle

1шт.
