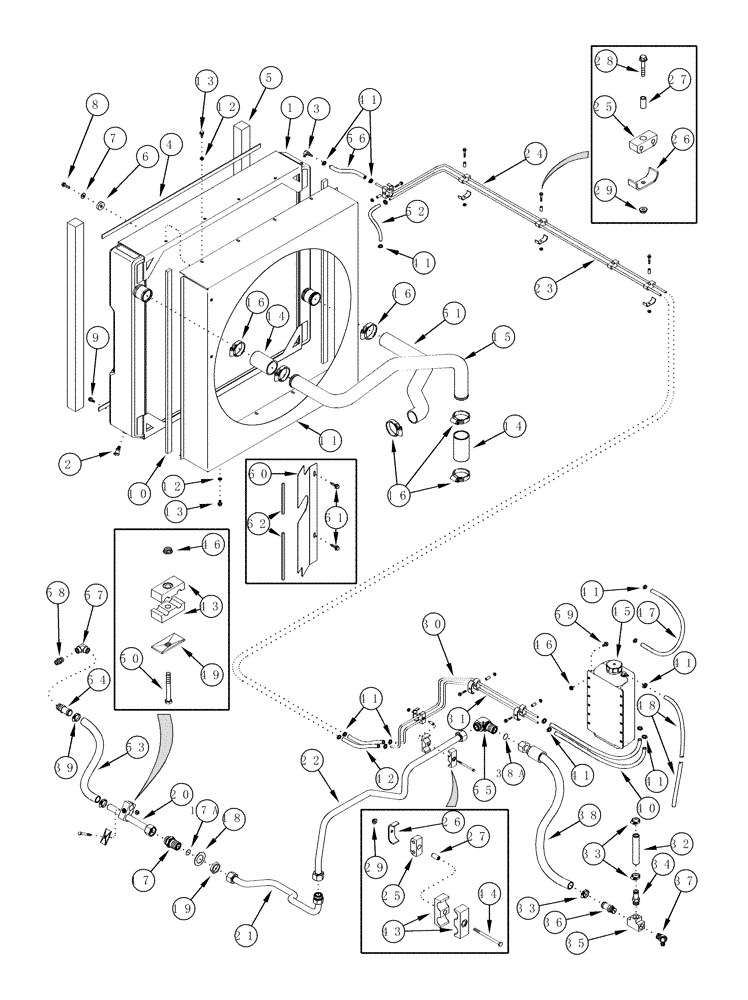

Запчасти Case IH CPX620 (02-01) - RADIATOR, FAN SHROUD AND COOLANT RECOVERY SYSTEM (01) - ENGINE

1

257533A2

RADIATOR

1шт.

2

86982771

VALVE

1/4 PT

1шт.

3

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

1шт.

4

370863A1

SEAL

960 mm (37-25/32 in), Cut From 195917C2

2шт.

5

370776A1

GASKET

973 mm (38-5/16 in), Cut From 1264566C2

2шт.

6

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

4шт.

7

495-21038

WASHER,5/16"

4шт.

8

555-14

BOLT,M8 x 38.1mm, Cl 8.8

M8 x 30; 8.8

4шт.

9

370229A1

SCREW,Hex Flg, M8 x 20mm

M8 x 20

5шт.

10

368993A1

GASKET

960 mm (37-13/16 in), Cut From 87084C2

2шт.

11

87410641

SHROUD

Engine Fan

1шт.

12

495-11034

WASHER,5/16", SAE

9шт.

13

905-8016

BOLT,Hex Flg, M8 x 16mm

9шт.

14

292755A1

HOSE,57.15 mm ID x 101.60 mm, SAE 20R4 CLASS D1 PER SAE J20

101 mm (4 in)

2шт.

15

284758A3

TUBE,2.25" OD, 657, 364 mm Length

1шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

6шт.

17

201-116

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

blkhd 1-7/16 fc sl, Inc. 17A

1шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

19

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

1-7/16 NF

1шт.

20

409129A1

TUBE

1шт.

21

409130A1

TUBE

1шт.

22

414309A2

TUBE

1шт.

23

409133A1

VENTILATION PIPE

Engine Vent

1шт.

24

409132A2

VENTILATION PIPE

Radiator Vent

1шт.

25

418783A1

CLAMP

8шт.

26

418784A1

PLATE

7шт.

27

418785A1

SPACER

7шт.

28

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

6шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

30

408595A1

VENTILATION PIPE

1шт.

31

408594A1

VENTILATION PIPE

Radiator Vent

1шт.

32

408599A1

HOSE ASSY.

144 mm (5-43/64 in)

1шт.

33

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

34

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

3/4 PT x barb

1шт.

35

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

3/4 fem PT

1шт.

36

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

37

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

38

408593A1

HOSE ASSY.

520 mm (20-1/2 in), Inc. 38A

1шт.

38a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

3шт.

40

408605A1

HOSE

665 mm (26-3/16 in), Cut From 1254166C2

2шт.

41

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

15шт.

42

408604A1

HOSE

228 mm (9 in), Cut From 1254166C2

2шт.

43

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID

2шт.

44

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1шт.

45

251245A1

RESERVOIR, COOLANT E

Includes 45A

1шт.

45a

238903A1

FILLER CAP

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

47

408608A1

HOSE

610 mm (24 in), Cut From 1254166C2

1шт.

48

408606A1

HOSE

2187 mm (86-1/8 inch), Cut From 1254166C2

1шт.

49

1347127C1

PLATE

1шт.

50

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

51

257528A1

RADIATOR HOSE,57.15 mm ID x 497.80 mm, SAE 20R4 CLASS D-1, SAE R20

Lower

1шт.

52

408601A1

HOSE

838 mm (33 in)

1шт.

53

408600A1

HOSE

577 mm (22-3/4 in)

1шт.

54

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

55

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x bkhd fc

1шт.

56

408602A1

HOSE,8.30 mm ID x 175.00 mm

Cut From 1254166C2

1шт.

57

217-1124

ELBOW,45 Degree, 3/4"-14 Female

3/4 PT

1шт.

58

221-1212

FITTING

3/4 PT x 1-1/2

1шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

60

394803A3

PANEL

Heat Deflector, Serial Range: -Y6T011701

1шт.

60

87340570

PANEL ASSY.

Heat Deflector, Start Serial: Y6T011701

1шт.

61

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

62

195510A1

PROTECTION STRIP

91 mm (3-5/8 in), Cut From 1977224CX

1шт.
