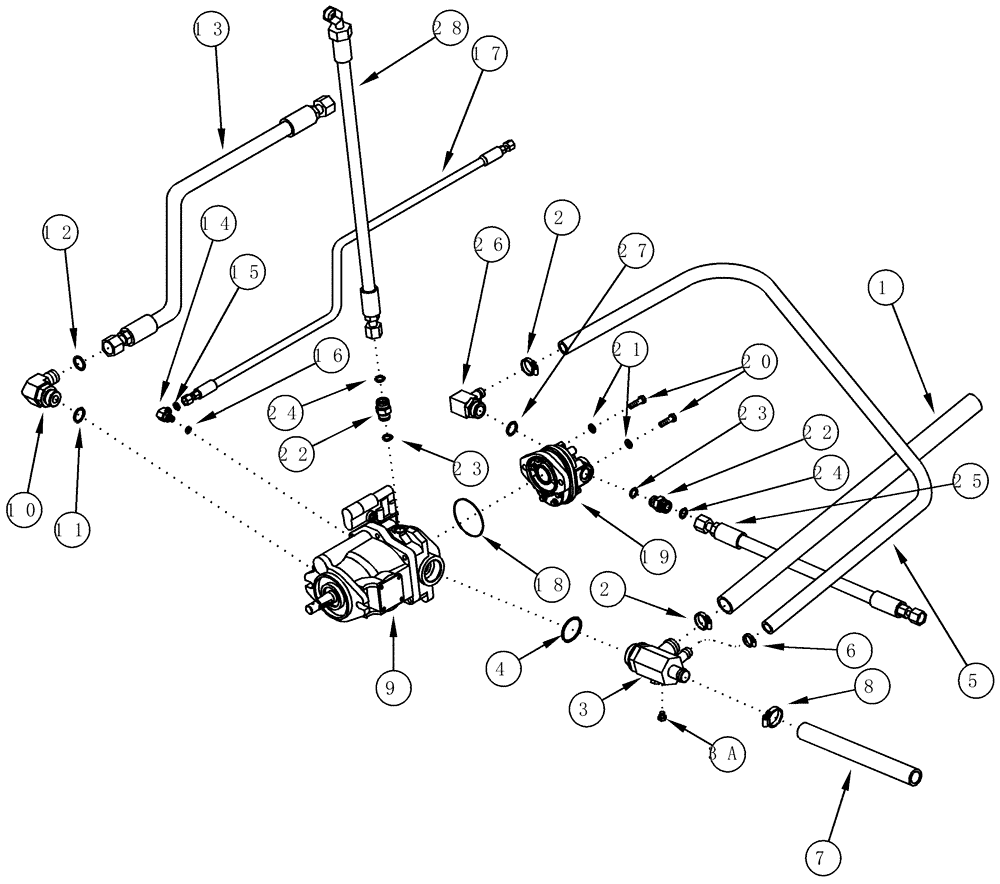

Запчасти Case IH CPX620 (08-05) - RESERVOIR TO HYDRAULIC PUMP SYSTEM (07) - HYDRAULICS

1

109207A1

FLEXIBLE HOSE

737 mm (29 in), Reservoir To Pump

1шт.

2

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

3

244469A2

FITTING

Pump Inlet, Inc. 3A, 4

1шт.

3a

76349

PLUG,9/16" - 18 ORB

1шт.

4

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

5

197024A1

HOSE,19.05mm ID x 560mm L

460 mm (18-1/8 in), Suction

1шт.

6

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

13/16 - 1-3/4

2шт.

7

408846A1

HOSE

300 mm (13 in), Cut From 1541952C1

1шт.

See Figure 06-04

1шт.

8

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

9

434239A1

PUMP, HYDRAULIC,45.1 CC

1шт.

See Figures 08-07, 08-08

1шт.

9

434239A1R

REMAN-HYD PUMP

Piston

1шт.

9

434239A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-3/16 fc x 1-5/16 Or, Inc. 11, 12

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

1988892C1

HOSE

1400 mm (55-1/8 in)

1шт.

See Figure 08-10

1шт.

14

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 15, 16

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

1990123C2

HYDRAULIC HOSE,6.35 mm ID x 950.00 mm, SAE 100R1 Class 21

1шт.

See Figure 08-10

1шт.

18

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

19

247337A1

PUMP, HYDRAULIC,10.8 CC

Gear

1шт.

See Figure 08-09

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

22

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 23, 24

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

197726A1

HOSE

740 mm (29-1/8 in), Pump to Auger Control

1шт.

See Figure 08-11

1шт.

26

217-362

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

399768A1

HOSE ASSY.

685 mm (26-31/32 in)

1шт.
