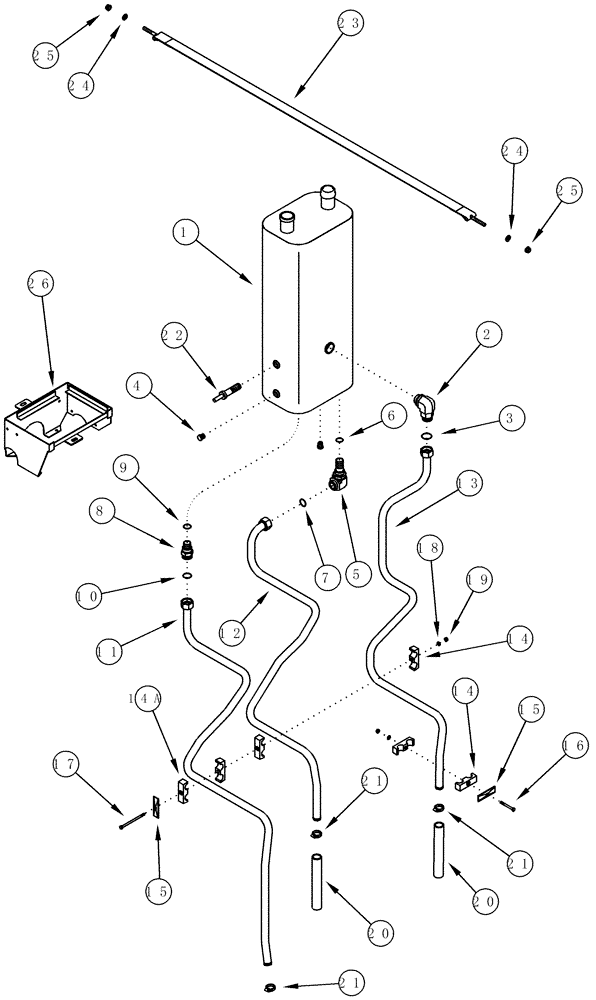

Запчасти Case IH CPX620 (08-01) - HYDRAULIC RESERVOIR ASSEMBLY (07) - HYDRAULICS

1

86991461

TANK, HYDRAULIC OIL

76 Liters (20 gal), Serial Range: -Y6T011703

1шт.

See Figure 08-02

1шт.

1

87589425

TANK, HYDRAULIC OIL

76 Liters (20 gal), Start Serial: Y6T011703

1шт.

See Figure 08-02

1шт.

2

201-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

Inc. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

5

400613A1

FITTING

Reservoir, Inc. 6, 7

1шт.

6

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

429559A1

FITTING

Straight, Inc. 9, 10

1шт.

9

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

429560A1

TUBE

Reservoir To Pump, Auxiliary

1шт.

12

389615A1

TUBE

Reservoir To Pump, Hydraulic

1шт.

13

390564A1

TUBE

Manifold Valve

1шт.

14

441341A1

CLAMP

1-1/4 - 1

2шт.

14a

433195A1

CLAMP

1-1/2 - 1-1/4

1шт.

15

1324469C1

PLATE

2шт.

16

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

17

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

1шт.

18

495-11034

WASHER,5/16", SAE

2шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

20

1989349C3

HOSE

270 mm (10-5/8 in), Cut From 1541953C1

2шт.

21

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

22

122428A1

SWITCH

Hydraulic Oil Level

1шт.

23

301429A2

STRAP

Hold Down

1шт.

24

495-11053

WASHER,1/2", SAE

2шт.

25

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

26

301126A3

BASE

Hydraulic Reservoir

1шт.
