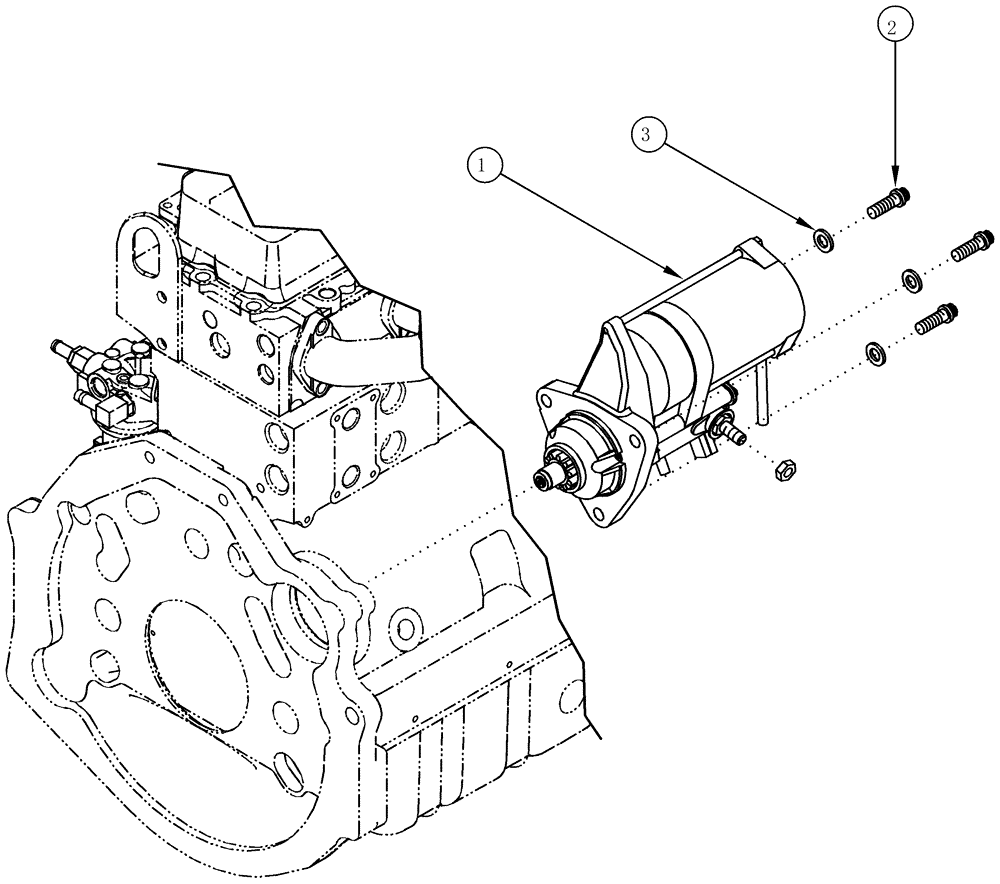

Запчасти Case IH CPX620 (04-23) - MOUNTING, STARTER (06) - ELECTRICAL SYSTEMS

1

193432A2

MOTOR,12V, 4.8kW

Starter, Denso, Serial Range: -Y6T011501

1шт.

See Figure 04-24

1шт.

1

87419387

STARTING MOTOR

Iskra, Start Serial: Y6T011501

1шт.

See Figure 04-25

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

CPX620, Start Serial: Y6T011501 (5/05-8/06), Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

1

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value

1шт.

2

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.
