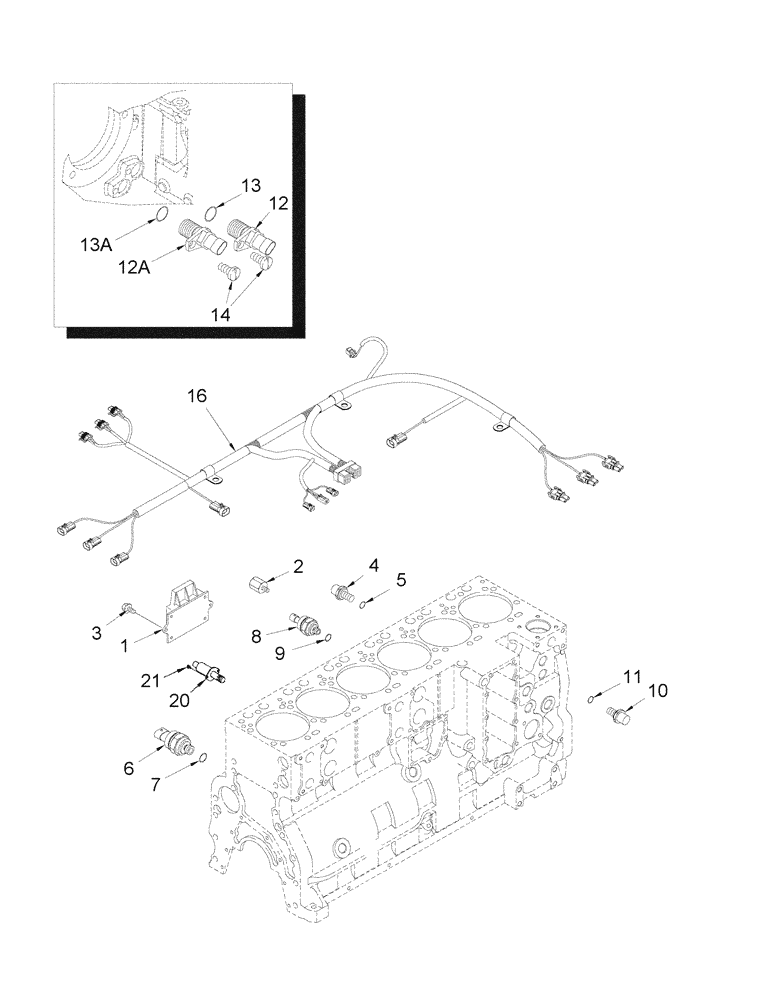

Запчасти Case IH CPX620 (04-20) - MODULE, ENGINE CONTROL - BSN Y6T011701 (06) - ELECTRICAL SYSTEMS

1

J944125

ECU

1шт.

1

JR944125

REMAN-ELECT MONITOR

Reman-Monitor Remanufactured

1шт.

1

JC944125

CORE-MONITOR

Return Part Number, Core

1шт.

2

J936236

SPACER

2шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

Pressure, Inc. 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

87536765

SENSOR

Pressure, Inc. 7

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

J408345

SENSOR

Temperature, Inc. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Temperature, Inc. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87405627

SENSOR

Engine RPM, Inc. 13

1шт.

12a

87400183

SENSOR

Position, Inc. 13A

1шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

13a

87400235

O-RING,0.612" ID x 0.103" W

1шт.

14

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

16

87323974

WIRE HARNESS

ETR Control Module, Used With 17, 18, 19

1шт.

20

J3085140

SENSOR

Not Used In This Application, 6TAA-9004

1шт.

21

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.
