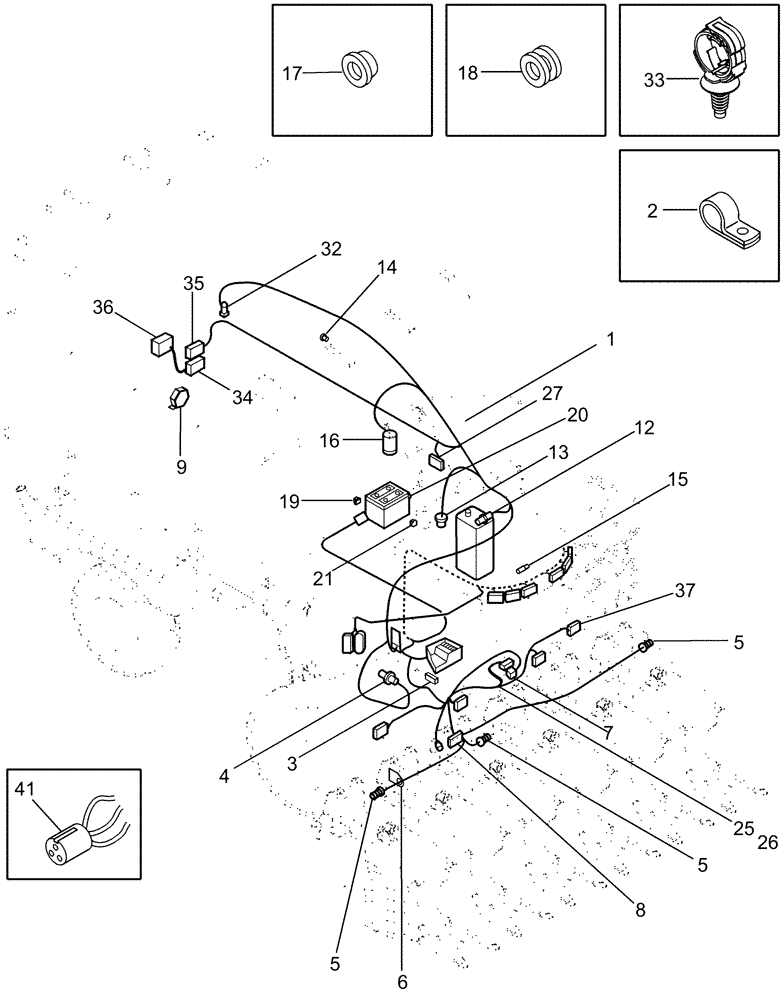

Запчасти Case IH CPX620 (04-10) - HARNESS, LEFT HAND SIDE - COMPONENT LOCATIONS (06) - ELECTRICAL SYSTEMS

1

413885A2

HARNESS

Left Hand Side, Serial Range: -Y6T011501

1шт.

1

87523858

HARNESS

Left Hand Side, Start Serial: Y6T011501

1шт.

2

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

4шт.

3

190158A1

BLOCK

Cab Power

1шт.

See Figure 04-04

1шт.

4

1983575C1

SWITCH

Neutral Start

1шт.

See Figure 06-18

1шт.

5

295528A1

SWITCH

Proximity, Drum Lift (2), Drum Tilt

3шт.

See Figure 04-11

1шт.

6

446277A1

BRACKET

Proximity Switch

3шт.

7

47532787

PRESSURE SWITCH

Pressure Park Brake

1шт.

See Figure 07-05

1шт.

8

1986618C1

SOLENOID

3-way, Park Brake

1шт.

9

325258A1

ALARM

Backup Alarm

1шт.

9a

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 cavity, Used With 325258A1, Not Illustrated

1шт.

9b

225317C1

WEDGE

Not Illustrated

1шт.

11

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

Cab Ground

1шт.

12

122428A1

SWITCH

Hydraulic Oil Level

1шт.

See Figure 08-01

1шт.

13

141062A1

SENSOR

80 psi, Moisture Pressure

1шт.

See Figure 09B-03

1шт.

14

279492A1

RESTRICTION SWITCH

Air Filter Restriction

1шт.

15

279476A1

SENSOR

Coolant Level

1шт.

16

374204A1

PUMP, WATER

1шт.

17

1321767C1

GROMMET

3/8 x 1-1/2 x 3/8

1шт.

18

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

19

190158A1

BLOCK

Battery

1шт.

20

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

20a

359452A1

BOOT

Jump Start Protection, Not Illustrated

1шт.

21

183038A1

SOLENOID

Starter Relay

1шт.

See Figure 04-19

1шт.

24

185552A1

SOLENOID

12V, Ether Start, Not Illustrated

1шт.

See Figure 02-06

1шт.

25

338017A1

HARNESS

Transmission, Not Illustrated

1шт.

See Figure 04-14

1шт.

26

245193C2

SENSOR

Ground Speed

1шт.

See Figure 04-14

1шт.

27

127813A1

LAMP

Service, Inc. 28 - 31

1шт.

28

H40556

BULB

2шт.

29

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

6шт.

30

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

32

1987419C1

PROBE

Bar Lubrication

1шт.

See Figure 09A-44

1шт.

33

1990594C1

CLIP

4шт.

34

107324C91

LAMP BASE

Warning, Rear

2шт.

See Figure 04-29

1шт.

35

92260C1

LAMP,12V, 27W, Red

Stop-Tail

1шт.

See Figure 04-29

1шт.

36

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Flood, Halogen

1шт.

See Figure 04-30

1шт.

37

83885C91

LAMP

Warning, Drum, Side

2шт.

See Figure 04-29

1шт.

39

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

16шт.

40

231-5146

FLANGE NUT,3/8"-16

16шт.

41

87449805

RESISTOR

Monitor Conversion With 2 Resistors

2шт.

Used to Plug Drum Leads 5 and 6 When Machine is Run in 4RW Configuration

1шт.
