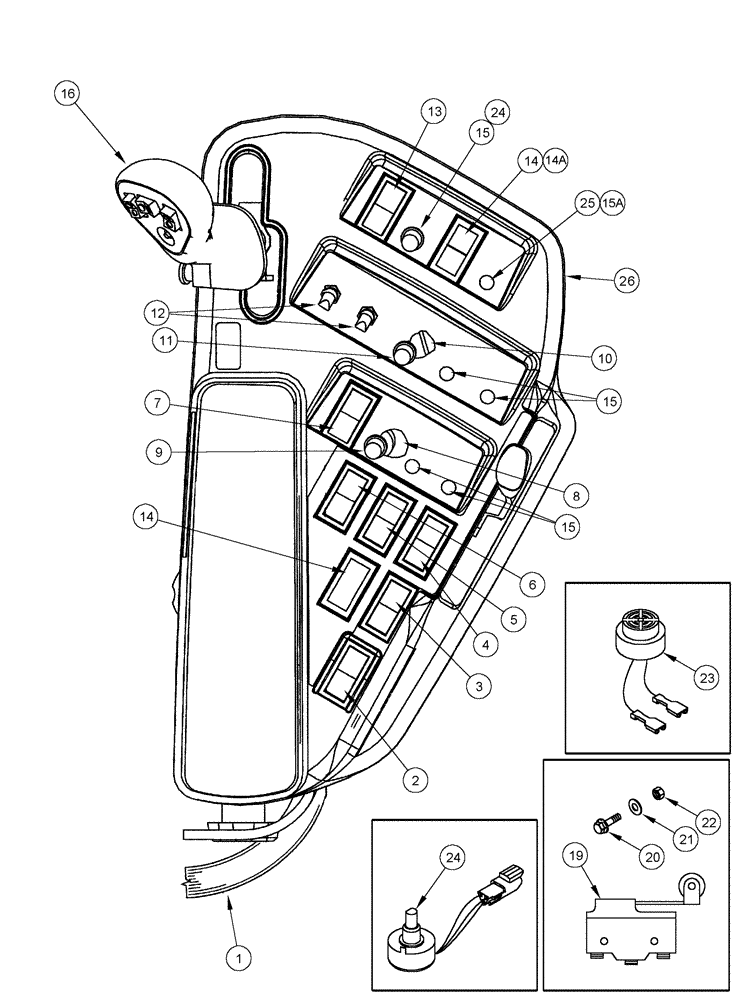

Запчасти Case IH CPX620 (04-07) - HARNESS CONSOLE (06) - ELECTRICAL SYSTEMS

1

435349A1

HARNESS

Console, Serial Range: -Y6T011501

1шт.

1

87374526

HARNESS

Console, Start Serial: Y6T011501

1шт.

2

124098A1

SWITCH

Parking Brake

1шт.

3

124105A1

SWITCH

Power Guide Axle, 4WD, Two Speed, Serial Range: -Y6T011701

1шт.

3

245918C1

LENS

Rectangular, Start Serial: Y6T011701

1шт.

4

124104A1

FAN SWITCH

1шт.

5

124097A1

SWITCH

Hydraulic Lockout

1шт.

6

447753A1

SWITCH

Basket Lock, Drum Lock

1шт.

7

184865A1

SWITCH

Moistener

1шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

1шт.

9

118780A1

KNOB

Potentiometer

1шт.

10

233945A2

SWITCH

Compactor Auger

1шт.

11

337017A1

KNOB

Compactor Auger

1шт.

12

121541C2

SWITCH

Toggle, Drum Lower, Left Hand, Right Hand

2шт.

13

187104A1

SWITCH

OPS Service

1шт.

14

245918C1

LENS

Rectangular, Without Row Guidance, blanking rocker switch

2шт.

14a

429676A1

SWITCH

Row Guidance On/Off

1шт.

15

353-402

PLUG,Dome, .375" hole, Nylon

Without Row Guidance

5шт.

15a

399734A1

SWITCH

Engage Row Guidance System, Inc. 15B, 15C

1шт.

15b

225315C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

15c

225318C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

16

REF

INSTRUCTION

Control Lever, Propulsion

1шт.

See Figure 04-16

1шт.

17

3141107R1

BULB,W5/1.2, 12V, 1.2W

Rocker Switch, Not Illustrated

1шт.

18

134608A1

LAMP SOCKET

Rocker Switch, Not Illustrated

1шт.

19

141655A1

SWITCH

Backup Alarm

1шт.

20

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

21

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

22

225-14104

NUT,#4-40

2шт.

23

1983568C1

BUZZER

Row Guidance Chime, If Equipped

1шт.

24

114551A1

POTENTIOMETER,2500 Ohm, 500V

Row Guidance Offset, If Equipped

1шт.

25

353-404

PLUG,Dome, .500" hole, Nylon

Without Row Guidance

1шт.

26

87457694

COVER ASSY

Console

1шт.
