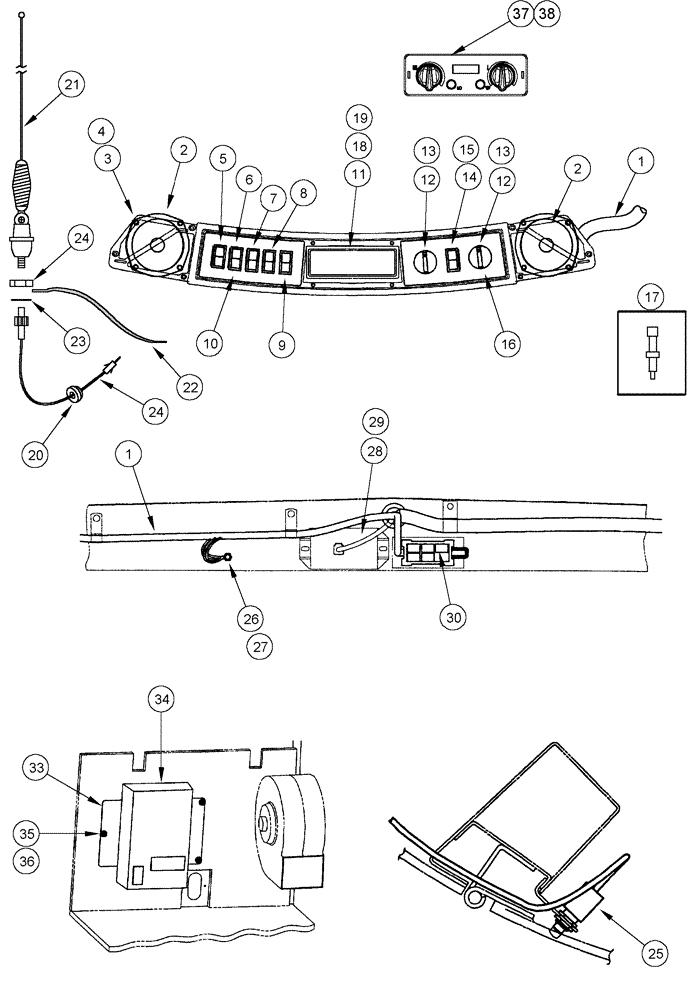

Запчасти Case IH CPX620 (04-03) - HARNESS, MAIN CAB - OVERHEAD CONTROL PANEL (06) - ELECTRICAL SYSTEMS

1

87330420

WIRE HARNESS

HARNESS, Main Cab, Serial Range: -Y6T011501

1шт.

See Figures 04-02, 04-04

1шт.

1

87374525

WIRE HARNESS

Main Cab, Start Serial: Y6T011501

1шт.

See Figures 04-02, 04-04

1шт.

2

375389A1

SPEAKER

5-1/2

2шт.

3

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

5

141430A1

SWITCH

Emergency Unload

1шт.

6

279263A1

FLASHER SWITCH

Hazard

1шт.

7

124095A1

LIGHT SWITCH

1шт.

8

144160A1

SWITCH

Drum Lamp

1шт.

9

141488A1

WINDSHIELD WIPER SWI

Wiper

1шт.

10

87404881

DECAL

Overhead Control Panel, Not Illustrated

1шт.

11

1535219C1

COVER

Without Radio

1шт.

12

114551A1

POTENTIOMETER,2500 Ohm, 500V

Fan Speed, Temperature, Serial Range: -Y6T011701

2шт.

13

1977521C1

BUTTON

Potentiometer, Serial Range: -Y6T011701

2шт.

14

234997A1

SWITCH

Heating and Air Conditioning, Inc. 15, Serial Range: -Y6T011701

1шт.

15

D71346

TAIL LAMP,12V

No. 168, Serial Range: -Y6T011701

1шт.

16

139641A2

DECAL

Heating and Air Conditioning, Not Illustrated, Serial Range: -Y6T011701

1шт.

17

113699A1

RECTIFIER

2-5/8

1шт.

18

ZAEVR50

RADIO

AM-FM Stereo, Order From Ship Direct

1шт.

19

ZAEJHD2000

UNIT

Radio, AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct

1шт.

19

ZAEJHD3000

UNIT

Radio, AM-FM Weatherband With CD, Order From Ship Direct

1шт.

20

R54547

GROMMET

1шт.

21

97080C1

ANTENNA

1шт.

22

278032A1

GROUND STRAP

Antenna

1шт.

23

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

24

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

25

1983341C1

SWITCH

Dome Lamp

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

28

86561136

MODULE

Flasher

1шт.

29

435831A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

2шт.

30

87414866

RELAY,12V, 20A

20 amp

5шт.

33

444675A1

PLATE

Steering Guidance Controller Mounting

1шт.

34

399731A1

CONTROL UNIT

Row Guidance Steering System, If Equipped, Serial Range: -Y6T011701

1шт.

34

87518209

MODULE

Row Guidance Steering System, If Equipped, Start Serial: Y6T011701

1шт.

35

495-11028

WASHER,1/4", SAE

3шт.

36

832-10406

NUT,M6 x 1, Cl 8

3шт.

37

87337658

AIR CONTROL

CONTROL ASSY Airco, A.T.C., Start Serial: Y6T011701

1шт.

38

87281122

SLEEVE

Control Enclosure, Start Serial: Y6T011701

1шт.
