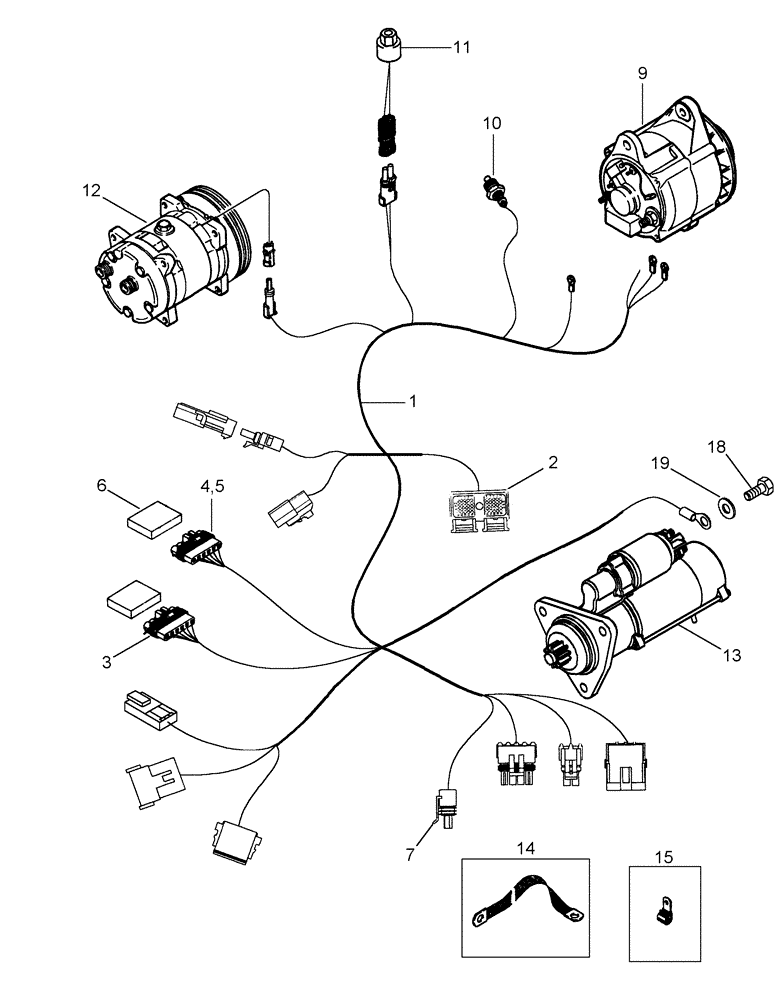

Запчасти Case IH CPX620 (04-01) - HARNESS, ENGINE (06) - ELECTRICAL SYSTEMS

1

388742A2

HARNESS

Engine, Inc. 2 - 7, Serial Range: -Y6T011501

1шт.

1

87393922

HARNESS

Engine, Inc. 2 - 7, Serial Range: Y6T011501-Y6T011700

1шт.

1

87356370

HARNESS

Engine, Tier 3, Inc. 2 - 7, Start Serial: Y6T011701

1шт.

2

242580A1

MULTIPOLE CONNECTOR,Female, 50 Pin

1шт.

3

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR Lock

2шт.

4

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR

2шт.

5

187309A1

BAR

2шт.

6

187308A1

CAP

2шт.

7

194788A1

CONNECTOR, 2-POLE

2 Cavity

1шт.

9

403782A1

ALTERNATOR

12V, 185 amp

1шт.

9

87645142R

REMAN-ALTERNATOR

CPX620 (5/05-8/06), Reman For New P/N 403782A1

1шт.

9

87645142C

CORE-ALTERNATOR

Return Part Number

1шт.

10

121756C2

SENSOR

Coolant Temperature

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

1шт.

12

86993462

AIRCOND. COMPRESSOR

1шт.

12

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

12

86993462R

REMAN-COMPRESSOR

CPX620 (5/05-8/06)

1шт.

12

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

12

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

12

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

12

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

12

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

13

193432A2

MOTOR,12V, 4.8kW

Starter, Serial Range: -Y6T011501

1шт.

See Figure 04-24

1шт.

13

87419387

STARTING MOTOR

Iskra, Start Serial: Y6T011501

1шт.

See Figure 04-32

1шт.

13

84146320R

REMAN-STARTER,12V, 4.2kW

CPX620, Start Serial: Y6T011501 (5/05-8/06), Reman for New P/N 87419387

1шт.

13

84146320C

CORE-STARTER,12V, 4.2kW

Return Part Number

1шт.

13

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value

1шт.

14

190567A1

CABLE

203 mm (8 in), Ground

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

15

1345263C1

CLIP

7/8 ID

2шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

17

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

Not Illustrated

2шт.

18

258820A1

SCREW

M5 x 8

1шт.

19

892-11005

LOCK WASHER,M5

1шт.
