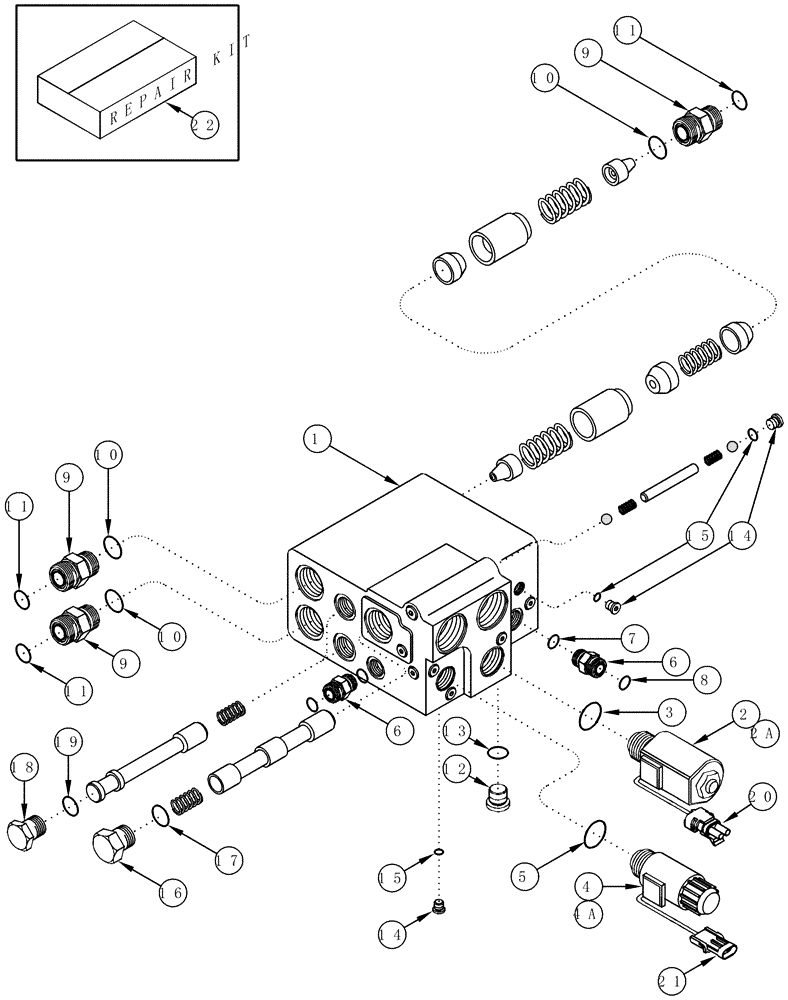

Запчасти Case IH CPX620 (05-09) - SELECTOR VALVE ASSY - BSN Y6T011701 (04) - STEERING

411578A1

VALVE

Selector, Power Guide Axle, Inc. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

437119A3

SOLENOID VALVE

On/Off, Inc. 2A

1шт.

2a

437120A3

COIL

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

437121A2

SOLENOID VALVE

By-Pass, Inc. 4A

1шт.

4a

437122A2

COIL

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 7, 8

3шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

437123A1

ADAPTER

160 RB x 120 RB, Modified, Inc. 10, 11

4шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

86625138

PLUG,7/18" - 14

Includes 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

Incl 15

16шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 17

2шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

437124A1

PLUG

Modified, Inc. 19

4шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

245482C1

ELEC CONNECTOR,2 Pin

Plug

1шт.

21

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

22

432792A1

KIT

O-Ring, Inc. 8, 10, 11, 13, 15, 17

1шт.
