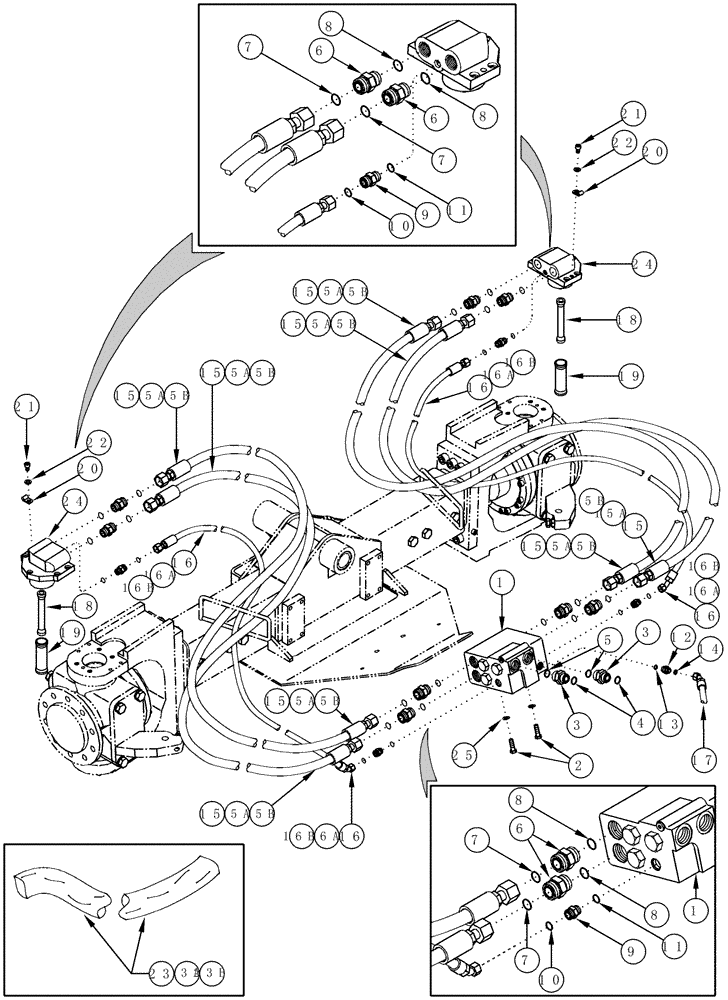

Запчасти Case IH CPX620 (05-08) - HYDRAULIC SYSTEM POWER GUIDE AXLE - BSN Y6T011701 (04) - STEERING

1

411578A1

VALVE

Selector, Power Guide Axle

1шт.

See Figure 05-09

1шт.

2

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

3

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1-3/16 fc x 1-5/16 Or, Inc. 4, 5

2шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 7, 8

4шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 10, 11

2шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 13, 14

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

391433A1

HOSE

Pressure, 80 inch Tread

4шт.

414559A2

PACKAGE

Conversion, 90 in, Inc. 15A, 16A, 23A, 391431A1

1шт.

15a

391434A1

HOSE

Pressure, 90 inch Tread

4шт.

414561A2

PACKAGE

Conversion, 108 in, Inc. 15B, 16B, 23B, 391432A1

1шт.

15b

391435A1

HOSE

Pressure, 108 inch Tread

4шт.

16

391437A1

HOSE

Drain, 80 inch Tread

2шт.

16a

391438A1

HOSE

Drain, 90 inch Tread

2шт.

16b

391439A1

HOSE

Drain, 108 inch Tread

2шт.

17

399773A1

HOSE ASSY.

Drain, Power Guide Axle

1шт.

18

433339A1

PIPE

Wheel Motor, Inner

2шт.

19

433341A1

PIPE

Wheel Motor, Outer

2шт.

20

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

21

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

4шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

23

432697A1

SLEEVE

Cordura Hose, 80 inch Tread

2шт.

23a

432788A1

SLEEVE

Cordura Hose, 90 inch Tread

2шт.

23b

238953A1

SLEEVE

60 ID x 914 mm lg, Cordura Hose, 108 inch Tread

2шт.

24

432698A1

GUIDE

King Pin, Upper

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
