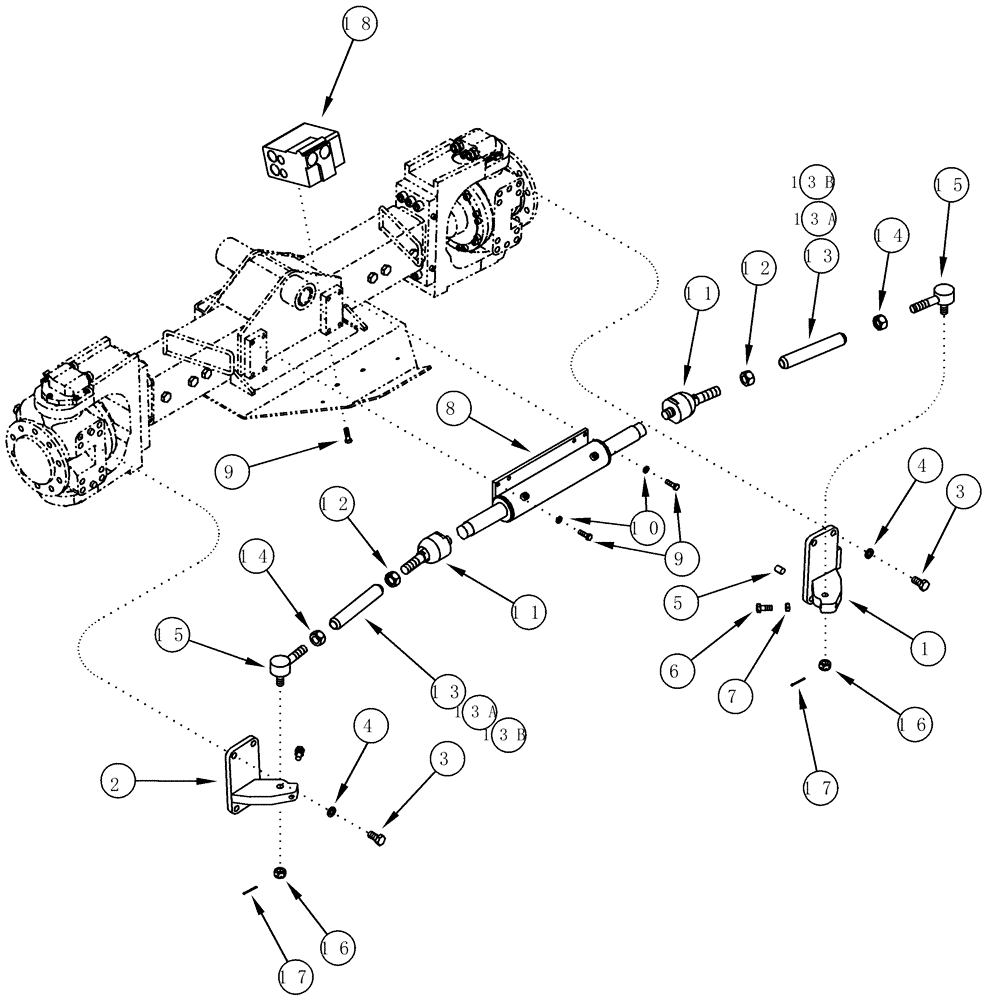

Запчасти Case IH CPX620 (05-04) - STEERING CYLINDER AND TIE ROD LINKAGE - BSN Y6T011701 (04) - STEERING

1

432693A2

BRACKET

Tie Rod, Left Hand

1шт.

2

432694A2

BRACKET

Tie Rod, Right Hand

1шт.

3

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

8шт.

4

492-11075

LOCK WASHER,3/4"

8шт.

5

437117A1

PIN

M20 x 26

2шт.

6

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

8

411577A1

CYLINDER

Steering, Power Guide Axle

1шт.

See Figure 05-05

1шт.

9

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

11

432692A1

SOCKET

M30 x M30

2шт.

12

432785A1

JAM NUT

M30

2шт.

13

391430A2

TIE-ROD

80 inch Tread

2шт.

414559A2

PACKAGE

Conversion, 90 Inch Tread, Inc. 391431A1, 391434A1, 391438A1, 432788A1

1шт.

See Figure 05-08

1шт.

13a

391431A2

TIE-ROD

90 inch Tread

2шт.

414561A2

PACKAGE

Conversion, 108 Inch Tread, Inc. 391432A1, 391435A1, 391439A1, 238953A1

1шт.

See Figure 05-08

1шт.

13b

391432A2

TIE-ROD

108 inch Tread

2шт.

14

432786A2

JAM NUT

1-1/8 NC

2шт.

15

432691A2

END

1-1/8 NC, Left Hand Threads

2шт.

16

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

17

432-832

COTTER PIN,1/8" x 2"

2шт.

18

411578A1

VALVE

Selector

1шт.

See Figure 05-09

1шт.
