Запчасти Case IH CPX610 (04-07) - HARNESS, RIGHT HAND SIDE - COMPONENT LOCATIONS (06) - ELECTRICAL SYSTEMS

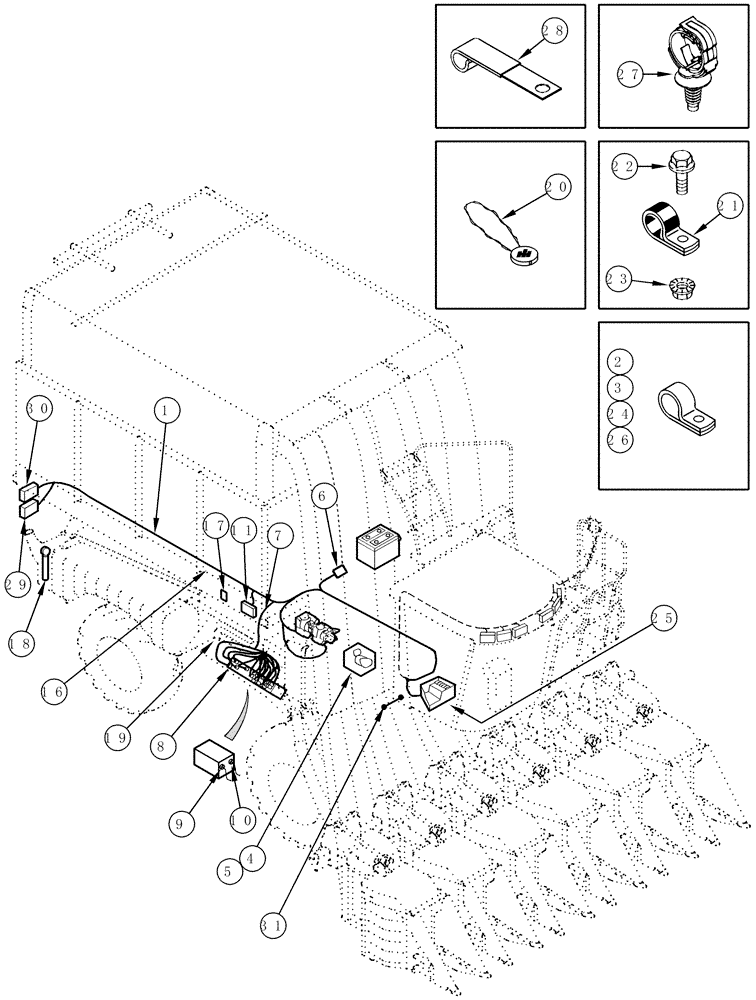

Схема запчастей Case IH CPX610 - (04-07) - HARNESS, RIGHT HAND SIDE - COMPONENT LOCATIONS (06) - ELECTRICAL SYSTEMS
1
6
24
2
8
3
17
28
23
20
31
25
30
27
4
29
9
10
26
11
16
7
18
19
5
21
22

Артикул

Название

Примечание

Количество

1

413884A2

HARNESS

Right Hand Side

1шт.

2

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

3шт.

3

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

7/8 ID

1шт.

4

256213A1

COIL

Destroke

2шт.

See Figure 06-09, Ref 40

1шт.

5

197514A2

SWITCH

Neutral Start

2шт.

See Figure 06-09, Ref 28

1шт.

6

245193C2

SENSOR

Fan RPM, MPH

1шт.

7

107236A2

HARNESS

Valve Block

1шт.

See Figure 04-12

1шт.

8

91963C1

GROUND STRAP

Valve Block

1шт.

9

194407A2

SWITCH

Auger Pressure, Compactor

1шт.

See Figure 08-11, Ref 10

1шт.

10

237130A1

COIL

Solenoid, Auger

1шт.

See Figure 08-11, Ref 9

1шт.

11

127813A1

LAMP

Service, Inc. 12 - 15

1шт.

12

H40556

BULB

2шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

6шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

15

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

16

J4002064

SENSOR

Engine RPM

1шт.

See Figure 04-17, Ref 12

1шт.

17

177678A1

TEMPERATURE SWITCH

Hydraulic Oil Temperature

1шт.

See Figure 06-01, Ref 13

1шт.

18

397966A1

SENDER UNIT

SENDER Fuel Level

1шт.

See Figure 03-01, Ref 7

1шт.

19

302313A1

HARNESS

Power Guide Axle, 80 - 90 inch Axles, If Equipped

1шт.

See Figure 04-15

1шт.

19a

409789A1

HARNESS

Power Guide Axle, 108 inch Axle, If Equipped

1шт.

See Figure 04-15

1шт.

20

12736D

ELECTRICAL WIRE

WIRE Seal-Type "Governor" Wire

1шт.

21

240450A2

CLAMP

3 in dia

1шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

24

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

25

47532787

PRESSURE SWITCH

Parking Brake

1шт.

See Figure 07-05, Ref 17

1шт.

26

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

27

1990594C1

CLIP

4шт.

28

362126R1

CLIP

4шт.

29

130882C91

LAMP

Warning, Front and Rear

2шт.

See Figure 04-22

1шт.

30

92260C1

LAMP,12V, 27W, Red

Stop-Tail

1шт.

See Figure 04-22

1шт.

31

128739A1

CABLE

Cab Ground

1шт.

32

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

33

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

Выбрано товаров: 47
