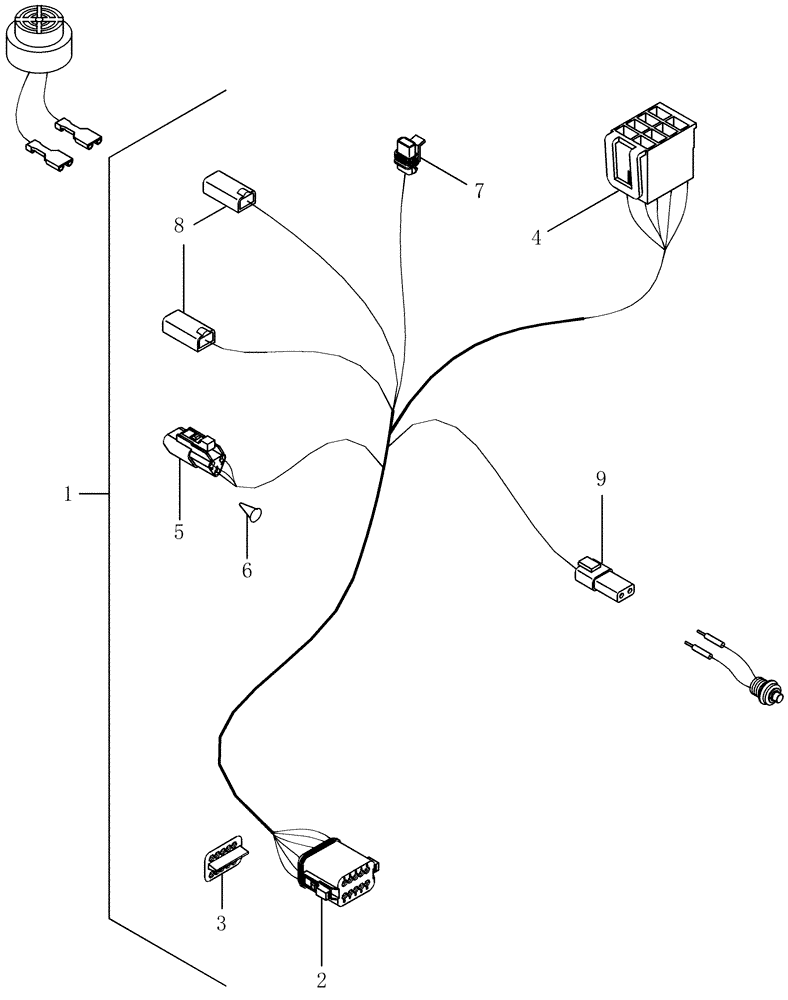

Запчасти Case IH CPX610 (04-06A) - HARNESS, CONSOLE WITH ROW GUIDANCE SYSTEM (06) - ELECTRICAL SYSTEMS

1

435349A1

HARNESS

Console With Row Guidance System, Inc. 1A and 1B

1шт.

1a

REF

INSTRUCTION

Harness, Row Guidance, Shown

1шт.

1b

413945A2

HARNESS

Console

1шт.

See Figure 04-06

1шт.

2

225389C1

CONNECTOR, ELEC

CONNECTOR 12 way, Inc. 3

1шт.

3

225391C1

WEDGE

1шт.

4

225214C1

CONNECTOR, ELEC

CONNECTOR On/Off Switch

1шт.

5

225295C1

ELEC CONNECTOR,Female, 3 Pin

Potentiometer Offset Adjust, Inc. 6

1шт.

6

225296C1

ELEC CONNECTOR

Wedge

1шт.

7

225250C1

CONNECTOR,ELECTRIC

Switch Indicator Light

1шт.

8

NSS

NOT SOLD SEPARAT

ALARM

2шт.

9

225316C1

ELEC CONNECTOR,Female, 2 Pin

To Propulsion Handle, Engage On/Off, Inc. 10

1шт.

10

225317C1

WEDGE

1шт.
