Запчасти Case IH CPX610 (04-04A) - HARNESS, MAIN CAB WITH ROW GUIDANCE SYSTEM (06) - ELECTRICAL SYSTEMS

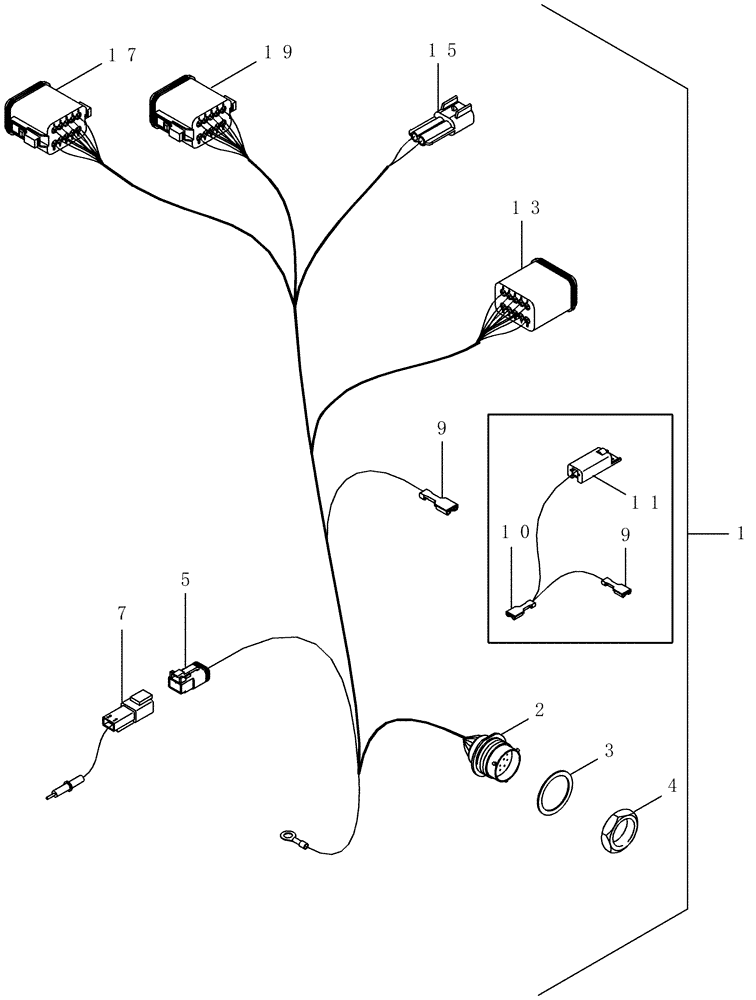

Схема запчастей Case IH CPX610 - (04-04A) - HARNESS, MAIN CAB WITH ROW GUIDANCE SYSTEM (06) - ELECTRICAL SYSTEMS
10
3
4
15
9
1
19
17
11
5
9
13
7
2

Артикул

Название

Примечание

Количество

1

397192A1

WIRE HARNESS

Main Cab With Row Guidance System, Inc. 2 - 20

1шт.

2

225233C1

CONNECTOR, ELEC

CONNECTOR 14 Cavity, To Cab Bulkhead

1шт.

3

490691C1

LOCK WASHER,#18 Shell

1шт.

4

490692C1

LOCK NUT,#18 Shell

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

Ground Speed, Inc. 6

1шт.

6

225317C1

WEDGE

Not Illustrated

1шт.

7

225315C1

ELEC CONNECTOR,Male, 2 Pin

Inc. 8

1шт.

8

225318C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

9

182121A1

CONNECTOR, ELEC

CONNECTOR Fuse Cavities

2шт.

10

382559A1

MULTIPOLE CONNECTOR,Female

Relay Cavity

1шт.

11

739070C1

CONNECTOR, ELEC

CONNECTOR Relay Cavity, Inc. 12

1шт.

12

1120922C1

ELEC CONNECTOR,Male, 1 - 2 mm2

Not Illustrated

1шт.

13

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 Cavity, Inc. 14, To Console Harness

1шт.

14

225390C1

WEDGE

Type NF, Not Illustrated

1шт.

15

182068A1

CONNECTOR, ELEC

CONNECTOR Inc.16, To Cab Harness

1шт.

16

182070A1

RETAINER

Not Illustrated

1шт.

17

225389C1

CONNECTOR, ELEC

CONNECTOR Inc. 18, To Controller

1шт.

18

225391C1

WEDGE

Not Illustrated

1шт.

19

225402C1

CONNECTOR, ELEC

CONNECTOR Inc. 20, To Controller

1шт.

20

225391C1

WEDGE

Not Illustrated

1шт.

Выбрано товаров: 20
