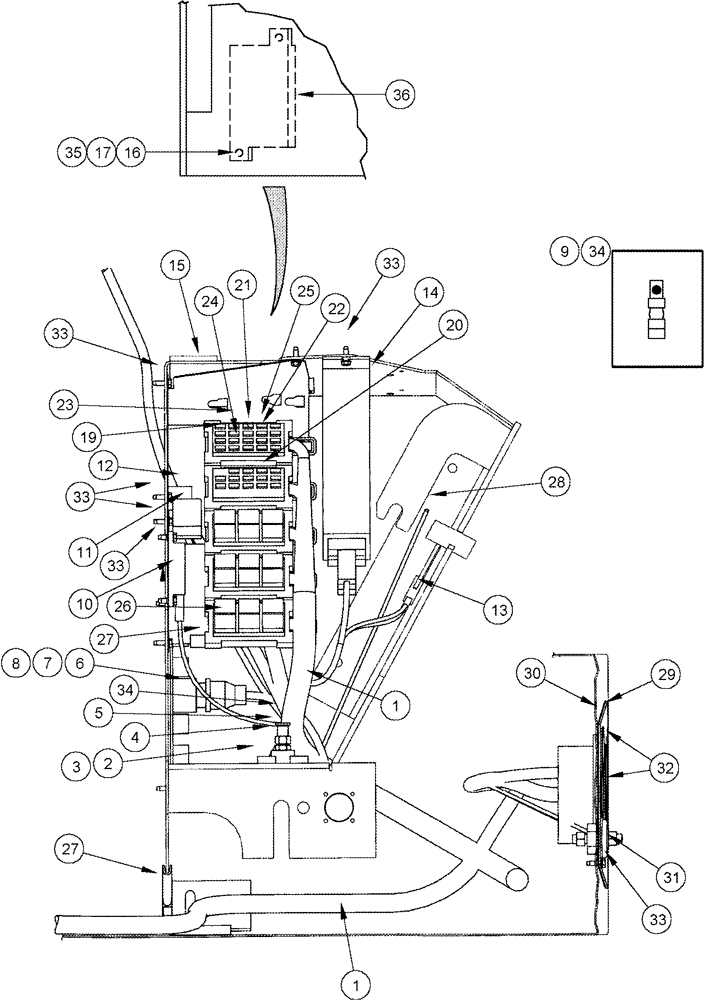

Запчасти Case IH CPX610 (04-04) - HARNESS, MAIN CAB - RIGHT HAND PEDESTAL (06) - ELECTRICAL SYSTEMS

1

409792A2

HARNESS

Main Cab

1шт.

See Figures 04-02 - 04-04

1шт.

2

303717A1

JUNCTION BLOCK

Junction

1шт.

3

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

6

1983419C3

CONTROL UNIT

Operator Presence System

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

8

495-31022

WASHER,#10

2шт.

9

113699A1

RECTIFIER

2-5/8

4шт.

10

284421A1

CONTROL UNIT

Coolant Level

1шт.

11

309001A1

FLASHER UNIT,12V

1шт.

12

1987452C1

RELAY

12V, 70 amp, Cab Power

1шт.

13

60-6515T1

SWITCH

Third Gear Lockout

1шт.

14

183969A3

CONTROL UNIT

Moistener, RPM Control

1шт.

15

123116A1

PANEL

Fuse and Relay

1шт.

16

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

17

231-14106

NUT,#6-32, GB

No. 6

2шт.

18

336851A2

DECAL

Fuse Block, See Figure 09F-15

1шт.

222699A1

FUSE KIT

Inc. 19 - 25 (1 ea)

1шт.

19

121850A1

FUSE,3A, Mini, Violet

3шт.

20

121410A1

FUSE,5A, Mini, Tan

7шт.

21

121412A1

FUSE,10A, Mini, Red

10шт.

22

121413A1

FUSE,15A, Mini, Blue

5шт.

23

121414A1

FUSE,20A, Mini, Yellow

4шт.

24

121415A1

FUSE,25A, Mini, Clear

2шт.

25

121416A1

FUSE,30A, Mini, Green

3шт.

26

105849A1

RELAY

20 amp

12шт.

27

70-5848T1

SEAL

140 mm (5-1/2 in), Cut From F64277X

1шт.

28

320585A1

SWITCH

Transmission Release

1шт.

See Figure 06-14

1шт.

29

317605A1

LARGE PLATE

PLATE, LARGE

1шт.

30

318242A1

GASKET

1шт.

31

190158A1

BLOCK

1шт.

32

282855A1

DECAL

Backing, Not Illustrated

2шт.

33

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

34

A187874

MODULE

Rectifier

2шт.

35

231-14106

NUT,#6-32, GB

No. 6

2шт.

36

122845A1

JUNCTION BLOCK

Feedback

1шт.
