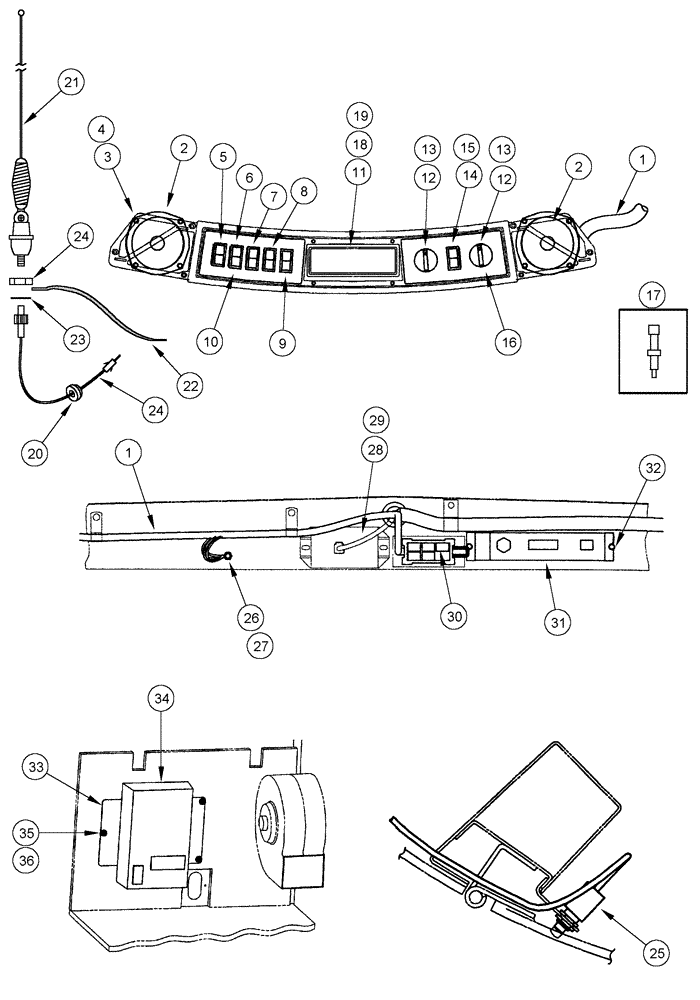

Запчасти Case IH CPX610 (04-03) - HARNESS, MAIN CAB - OVERHEAD CONTROL PANEL (06) - ELECTRICAL SYSTEMS

1

409792A2

HARNESS

Main Cab

1шт.

See Figures 04-02 - 04-04

1шт.

2

375389A1

SPEAKER

5-1/2

2шт.

3

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

5

141430A1

SWITCH

Emergency Unload

1шт.

6

279263A1

FLASHER SWITCH

Hazard

1шт.

7

124095A1

LIGHT SWITCH

1шт.

8

144160A1

SWITCH

Drum Lamp

1шт.

9

141488A1

WINDSHIELD WIPER SWI

Wiper

1шт.

10

291616A1

DECAL

Overhead Control Panel, Not Illustrated

1шт.

11

1535219C1

COVER

Without Radio

1шт.

12

114551A1

POTENTIOMETER,2500 Ohm, 500V

Fan Speed, Temperature

2шт.

13

1977521C1

BUTTON

Potentiometer

2шт.

14

234997A1

SWITCH

Heating and Air Conditioning, Inc. 15

1шт.

15

D71346

TAIL LAMP,12V

No. 168

1шт.

16

139641A2

DECAL

Heating and Air Conditioning, Not Illustrated

1шт.

17

113699A1

RECTIFIER

2-5/8

1шт.

18

REF

INSTRUCTION

Radio, AM-FM Stereo, Order From Ship Direct

1шт.

19

REF

INSTRUCTION

Radio, AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct

1шт.

20

R54547

GROMMET

1шт.

21

97080C1

ANTENNA

1шт.

22

278032A1

GROUND STRAP

Antenna

1шт.

23

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

24

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

25

1983341C1

SWITCH

Dome Lamp

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

28

86561136

MODULE

Flasher

1шт.

29

121067A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

1шт.

30

105849A1

RELAY

20 amp

5шт.

31

128361A2

CONTROL MONITOR

Cotton Display

1шт.

31

87426497

BOX, FUSE

If Equipped

1шт.

32

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

33

444675A1

PLATE

Controller Mounting

1шт.

34

399731A1

CONTROL UNIT

Row Guidance System, If Equipped

1шт.

35

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

36

832-10406

NUT,M6 x 1, Cl 8

3шт.
