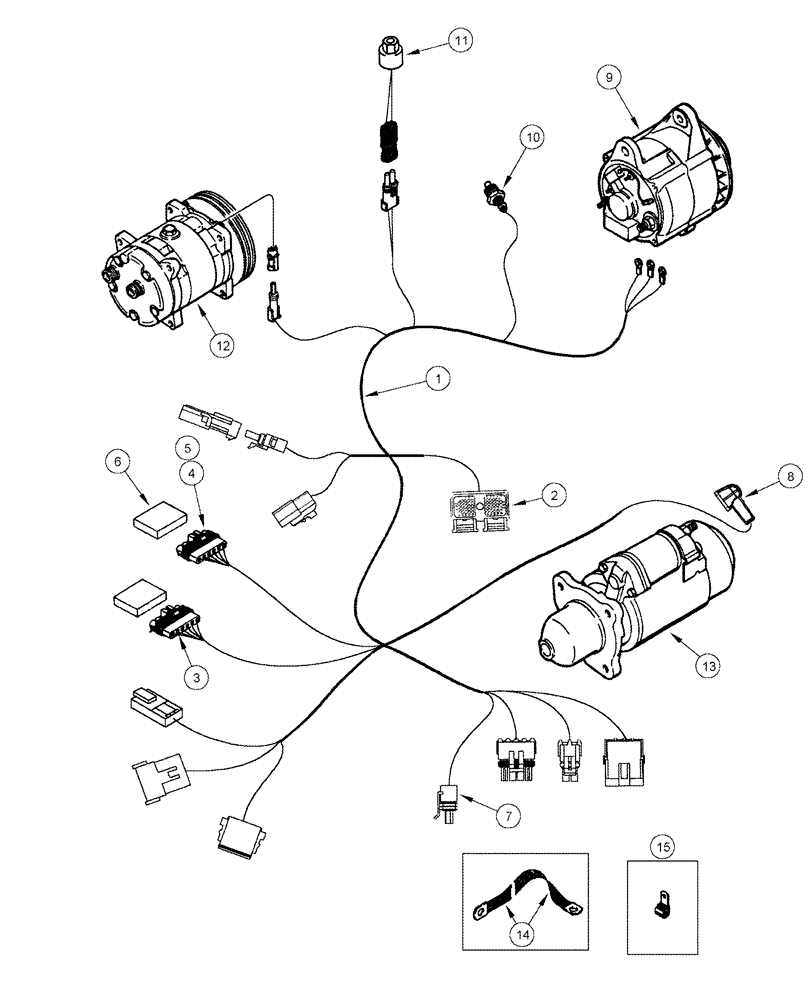

Запчасти Case IH CPX610 (04-01) - HARNESS, ENGINE (06) - ELECTRICAL SYSTEMS

1

388742A2

HARNESS

Engine, Inc. 2 - 8

1шт.

2

242580A1

MULTIPOLE CONNECTOR,Female, 50 Pin

1шт.

3

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR Lock

2шт.

4

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR

2шт.

5

187309A1

BAR

2шт.

6

187308A1

CAP

2шт.

7

194788A1

CONNECTOR, 2-POLE

2 Cavity

1шт.

8

399470R1

BOOT

1шт.

9

403782A1

ALTERNATOR

12V, 185 amp

1шт.

9

87645142R

REMAN-ALTERNATOR

CPX610, Reman For New P/N 403782A1

1шт.

9

87645142C

CORE-ALTERNATOR

Return Part Number

1шт.

10

121756C2

SENSOR

Coolant Temperature

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

1шт.

12

1999755C3

COMPRESSOR

Air conditioning

1шт.

See Figure 9E-20

1шт.

12

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

12

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

12

86993462R

REMAN-COMPRESSOR

CPX610; Reman For New P/N 1999755C3

1шт.

12

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

12

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

12

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

13

193432A2

MOTOR,12V, 4.8kW

1шт.

See Figure 04-20

1шт.

13

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

13

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number

1шт.

13

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value, 12 Volt, 4 KW

1шт.

14

190567A1

CABLE

203 mm (8 in), Ground

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

15

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

17

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

5/8 x 3/4, Not Illustrated

2шт.
