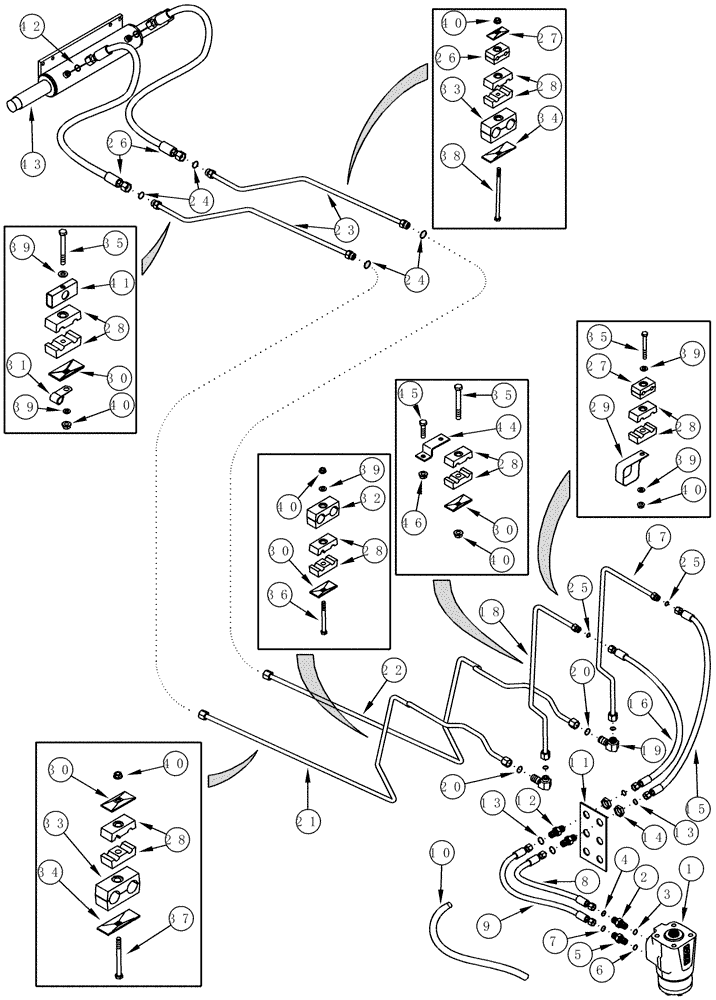

Запчасти Case IH CPX610 (05-03) - HYDRAULICS STEERING (04) - STEERING

1

387550A1

PUMP

Steering, No Service Parts, Serial Range: -JJC0250200

1шт.

1

387550A2

STEERING VALVE

Steering, No Service Parts, Start Serial: JJC0250200

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Inc. 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

187656A1

HOSE

1830 mm (72 in)

1шт.

9

187655A1

HOSE

1830 mm (72 in)

1шт.

10

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38 in)

1шт.

11

184359A2

LARGE PLATE

PLATE, LARGE

1шт.

12

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 13, 14

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

15

187649A1

HOSE

1070 mm (42-1/8 in)

1шт.

16

187651A1

HOSE

1120 mm (44 in)

1шт.

17

429552A1

TUBE

Steering, Right Hand Front

1шт.

18

429553A1

TUBE

Steering, Left Hand Front

1шт.

19

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 20

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

429563A1

TUBE

Steering, Right Hand Middle

1шт.

22

429562A1

TUBE

Steering, Left Hand Middle

1шт.

23

429572A1

TUBE

Steering, Rear

2шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

429568A1

HOSE ASSY.

2шт.

27

1546024C1

CLAMP

2 Piece

1шт.

28

1546025C1

CLAMP

2 Piece

7шт.

29

1301387C2

CLIP

2 in ID

1шт.

30

1347127C1

PLATE

3шт.

31

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

32

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID

1шт.

33

413343A1

CLAMP

3шт.

34

1324469C1

PLATE

3шт.

35

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

36

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16 x 3-1/2

1шт.

37

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

5/16 x 4-1/2

1шт.

38

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

.313 X 6 UNC GR5 YZD

2шт.

39

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

5шт.

40

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

6шт.

41

142025A1

TUBE,100 mm Length

13/32 x 1-1/2 x 7/64

1шт.

43

411577A1

CYLINDER

2шт.

See Figure 05-05

1шт.

44

196517C1

SUPPORT TUBE

1шт.

45

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

3/8 x 1; 5

1шт.

46

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.
