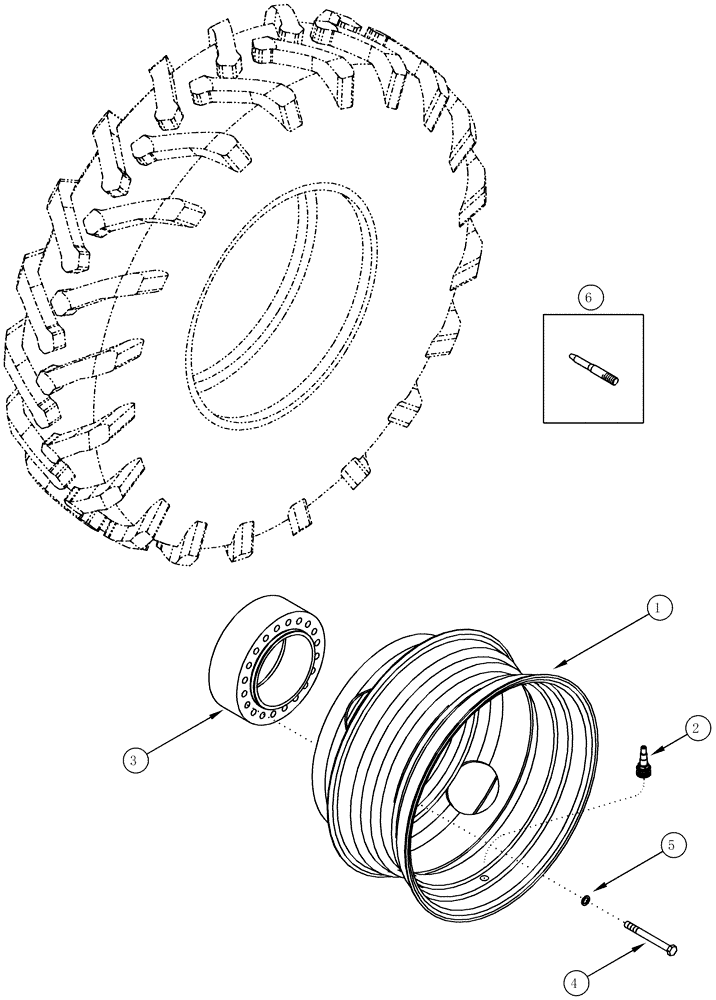

Запчасти Case IH CPX610 (06-20) - WHEELS, DRIVE (03) - POWER TRAIN

1

232749A2

WHEEL

32 x DW13

2шт.

2

179482C1

VALVE STEM

7/16 in dia, 7/16 inch Diameter

2шт.

3

140712A1

SPACER

127mm (5 in)

2шт.

4

514-1228

BOLT,Hex, M20 x 1.5 x 200mm, Cl 10.9

M20 x 200

40шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

30шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

21 x 33 x 3.4 mm

20шт.

6

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

1шт.
