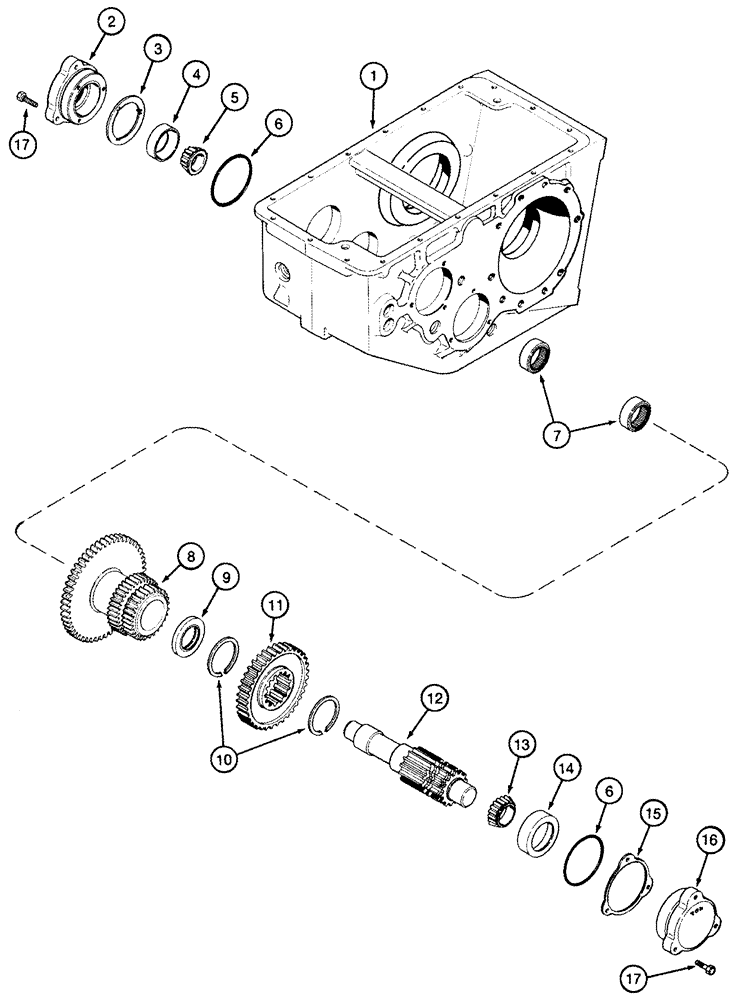

Запчасти Case IH CPX610 (06-17) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

313476A1

TRANSMISSION

1шт.

Inc. Figures 06-16 - 06-18, 07-04

1шт.

313476A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

313476A1C

CORE-TRANSMISSION

Return Number - For N.A. only

1шт.

236314A1R

REMAN-TRANSMISSION

CPX610 CASE IH COTTON PICKER, Reman for New PN 313476A1

1шт.

236314A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236381A1

HOUSING

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER Left Hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

4

131312C1

BEARING CUP

1шт.

5

871244R1

ROLLER BEARING

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

3шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

Needle

2шт.

8

234132A1

GEAR

Spur, 57, 28, 28T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

1шт.

10

196693H1

RING

2шт.

11

234136A1

DRIVEN GEAR

43T

1шт.

12

401878R1

SHAFT

14T

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003")

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030")

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING Right Hand

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Use Loctite No. 516

6шт.
