Запчасти Case IH CPX610 (06-08) - TANDEM PUMP ASSEMBLY - HYDROSTATIC (REAR) (03) - POWER TRAIN

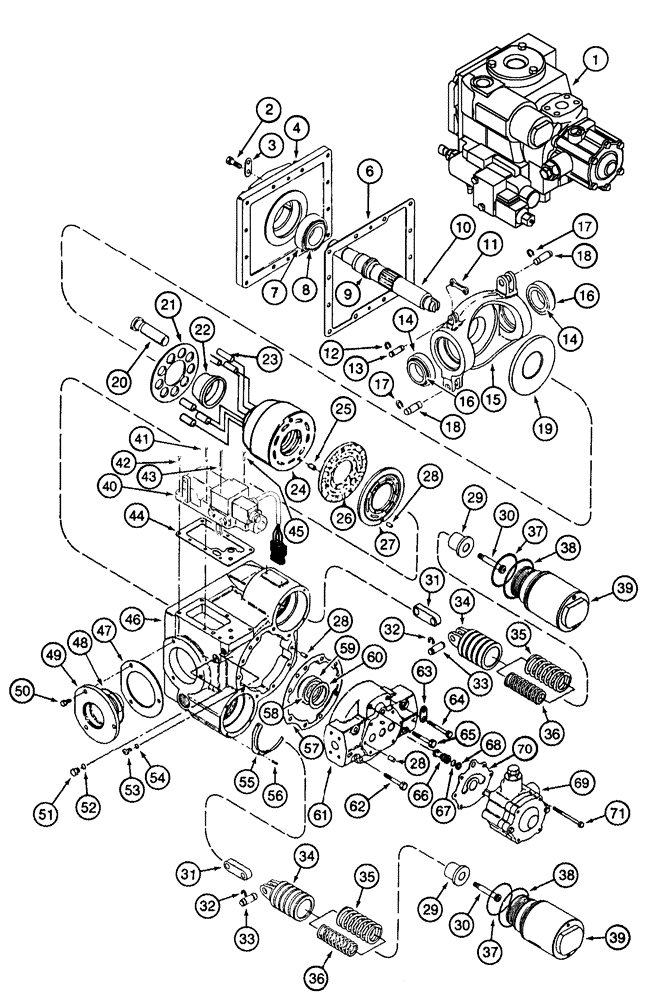

Схема запчастей Case IH CPX610 - (06-08) - TANDEM PUMP ASSEMBLY - HYDROSTATIC (REAR) (03) - POWER TRAIN
15
49
53
4
9
14
66
32
56
25
29
33
38
50
22
64
43
36
55
32
18
2
11
39
8
67
37
60
71
27
28
17
19
38
31
35
40
31
39
52
41
28
63
69
33
58
34
1
30
51
70
29
12
23
6
14
37
30
68
36
57
59
28
54
10
45
7
42
48
61
26
44
17
47
34
35
16
24
20
46
3
62
21
16
65
13
18

Артикул

Название

Примечание

Количество

1

407439A1

HYDROSTATIC PUMP

Rear, 54 cc, Inc. 2 - 71

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

3

NSS

NOT SOLD SEPARAT

STRAP

1шт.

4

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

6

142414C1

GASKET

1шт.

7

317706C2

BEARING, CUP,88.92mm OD x 19.1mm W

1шт.

445483A1

SHAFT

Input Shaft, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING, Cone

1шт.

9

NSS

NOT SOLD SEPARAT

RING, Retaining, No. 215

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

11

NSS

NOT SOLD SEPARAT

LINK, Connecting

1шт.

12

100-1125

SNAP RING,#25, Ext

2шт.

13

140765C1

PIN

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING, Cup, 3-1/4 OD

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE, Swash

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING, Cup, 2 ID

2шт.

17

100-1356

SNAP RING,#56, Ext

4шт.

18

37-1510

DOWEL,5/16" x 5/8"

Linkage

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE, Thrust

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON, Cylinder

9шт.

21

NSS

NOT SOLD SEPARAT

PLATE

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

23

NSS

NOT SOLD SEPARAT

DOWEL

6шт.

24

NSS

NOT SOLD SEPARAT

BARREL

1шт.

25

37-1510

DOWEL,5/16" x 5/8"

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE, Valve

1шт.

28

37-1510

DOWEL,5/16" x 5/8"

7шт.

29

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW

1шт.

31

NSS

NOT SOLD SEPARAT

LINK

1шт.

32

100-1375

SNAP RING,#75, Ext

2шт.

33

140766C1

PIN,14.22mm OD x 39.12mm L

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING, Heavy

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING, Light

1шт.

37

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

1шт.

38

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

40

445482A1

CONTROL VALVE

Hydrostatic Pump, Inc. 41 - 45

1шт.

See Figure 06-09

1шт.

41

61-33132

HEX SOC SCREW,5/16"-18 x 2"

5/16 x 2

2шт.

42

61-33116

HEX SOC SCREW,5/16"-18 x 1"

3шт.

43

61-33154

HEX SOC SCREW,5/16" - 18 x 3-3/8"

5/16 x 3-3/8

1шт.

44

133756C1

GASKET

1шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

46

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

140763C91

SHIM KIT

Trunnion Bearing, Inc. 47

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.002 in

6шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.025 in

4шт.

48

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

49

NSS

NOT SOLD SEPARAT

TRUNNION

2шт.

50

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

51

9672438

PLUG,7/16" - 20 ORB

Incl. 52

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

53

278548

PLUG,Hex, 7/16"-20 ORB

Incl 54

1шт.

54

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

140774C1

RETAINER

2шт.

56

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

No. 8 x 3/8

6шт.

57

140756C2

GASKET

1шт.

58

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

Cone, 5/8 ID

1шт.

59

140759C1

BEARING CUP

Cup, 2-1/4 OD

1шт.

140760C91

SHIM KIT

End Cover, Inc. 60

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.003 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in

1шт.

61

NSS

NOT SOLD SEPARAT

COVER, End

1шт.

62

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

63

NSS

NOT SOLD SEPARAT

STRAP, If Equipped

1шт.

64

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

4шт.

65

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

140769C1

CHECK VALVE

Inc. 66 - 68

2шт.

66

NSS

NOT SOLD SEPARAT

BODY

1шт.

67

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

68

140770C1

RING

1шт.

69

445481A1

PUMP

Charge, Inc. 70, 71

1шт.

See Figure, 06-11

1шт.

70

133760C2

GASKET

1шт.

71

326-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 8

4шт.

Выбрано товаров: 85
