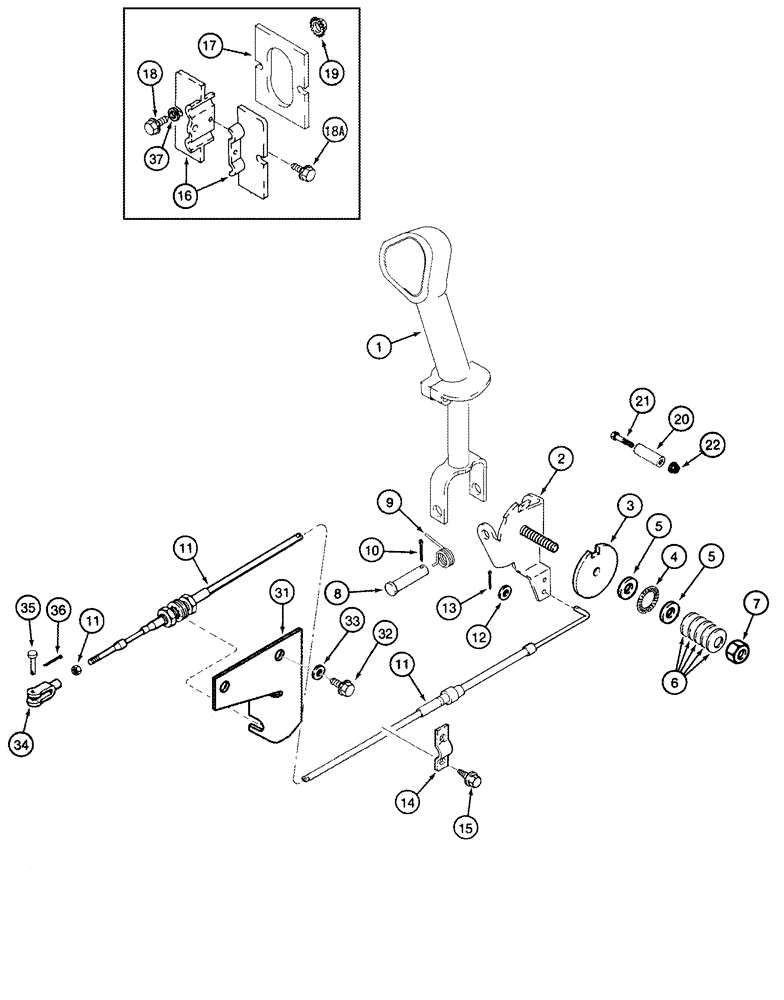

Запчасти Case IH CPX610 (06-05) - CONTROLS PROPULSION (03) - POWER TRAIN

1

113314A2

CONTROL LEVER

Propulsion

1шт.

See Figure 04-14, Ref 1

1шт.

2

113318A2

SUPPORT

1шт.

3

251090A1

THRUST WASHER

Wear

1шт.

4

159688R91

THRUST BEARING

1шт.

5

496-81010

WASHER

15/32 x 1 x 7/64

2шт.

6

1994980C1

BELLEVILLE WASHER

Belleville

6шт.

7

231-1447

NUT,7/16"-14, GB

1шт.

8

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1/2 x 3-7/16

1шт.

9

128593A1

SPRING

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1шт.

11

193428A1

CABLE,5281mm L

Propulsion Control

1шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

432-48

COTTER PIN,1/16" x 1/2"

1шт.

14

A75815

CLAMP

1шт.

15

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

16

119314A1

CLAMP

Bulkhead

2шт.

17

119328A1

GASKET,5mm Thk

1шт.

18

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

18a

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

179101A1

SPACER

, Serial Range: -JJC0250199

1шт.

21

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

, Serial Range: -JJC0250199

1шт.

22

825-5146

SERRATED NUT,M6, Flg Ser

, Serial Range: -JJC0250199

1шт.

31

127936A2

BRACKET

Cable

2шт.

32

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

34

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

35

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

36

432-48

COTTER PIN,1/16" x 1/2"

1шт.

37

492-11010

LOCK WASHER,#10

2шт.
