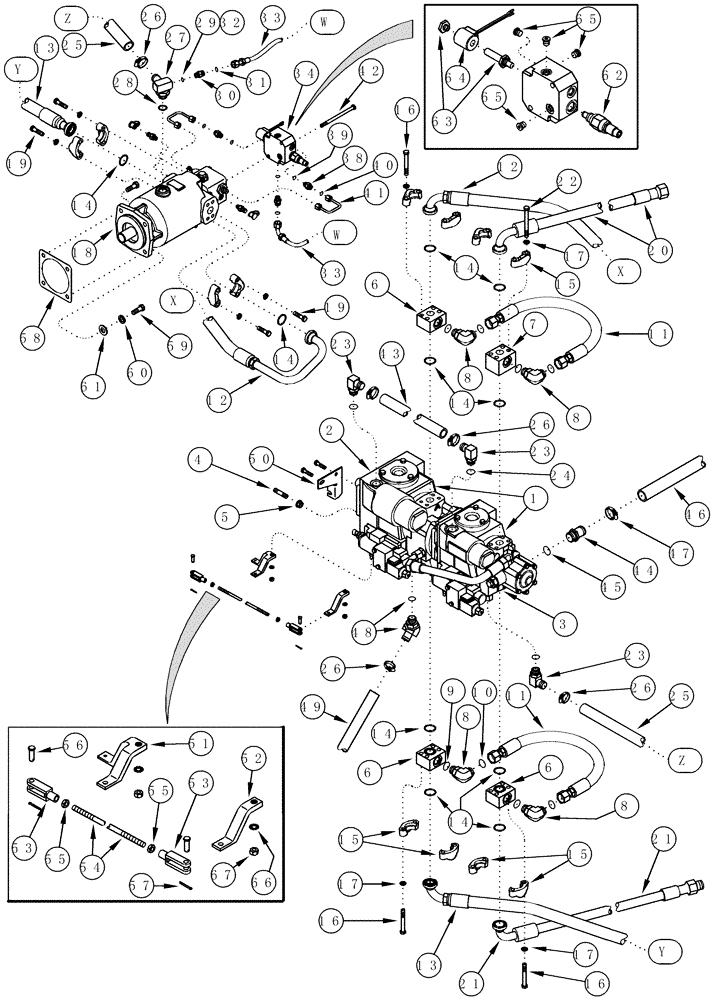

Запчасти Case IH CPX610 (06-04) - HYDROSTATICS PUMP AND MOTOR (03) - POWER TRAIN

1

407437A1

HYDROSTATIC PUMP

Tandem, Order Components 2, 3, 62, 63

1шт.

2

407438A1

HYDROSTATIC PUMP,105.4 CC

Front

1шт.

See Figures 06-07, 06-09, 06-10

1шт.

3

407439A1

HYDROSTATIC PUMP

54 cc, Rear

1шт.

See Figures 6-08 - 06-11

1шт.

4

1338122C2

STUD

1/2 in

4шт.

5

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

6

226646A1

BLOCK

3шт.

7

408284A1

BLOCK

1шт.

8

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 Or Inc. 9, 10

4шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

355591A1

HOSE ASSY.,19.05mm ID x 864mm L

864 mm (34 in), Crossover

2шт.

12

1984277C2

HOSE,25.4mm ID x 1575mm L

1575 mm (62 in), Motor Reverse

1шт.

13

1984276C2

HOSE,25.4mm ID x 1450mm L

1450 mm (57-1/16 in), Motor Forward

1шт.

14

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

10шт.

15

S97224

CLAMP

1 in

12шт.

16

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

7/16 x 3-1/2

12шт.

17

492-11044

LOCK WASHER,7/16"

24шт.

18

391366A1

HYDROSTATIC MOTOR

1шт.

See Figures 06-12, 06-13

1шт.

391366A1R

REMAN-HYDROSTAT MOTO

CPX610

1шт.

391366A1C

EXCH HYDROSTAT MOTOR

Return Number

1шт.

19

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

20

355590A1

HOSE,19.05mm ID x 3310mm L

3310 mm (130-5/16 in), Power Guide Axle, Reverse

1шт.

21

355589A1

HOSE,19.05mm ID x 3030mm L

3030 mm (119-9/32in), Power Guide Axle, Forward

1шт.

22

413-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

7/16 x 4-1/2, gr 5

4шт.

23

1546404C1

ELBOW

1 barb x 1-1/16 Or, Inc. 24

3шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

408845A1

HOSE

1420 mm (56 in), Cut From 1541952C1

1шт.

26

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

5шт.

27

1546404C1

ELBOW

Special, Inc. 28, 29

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 31, 32

2шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

399769A1

HOSE

476 mm (18-3/4 in), drain, Serial Range: -JJC0250100

1шт.

33

447915A1

HOSE

1320 mm (52 in), drain, Start Serial: JJC0250100

1шт.

34

322901A1

VALVE

Transmission Release, Inc. 62 - 65

1шт.

38

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl. 39, 40, Serial Range: -JJC0250199

2шт.

38

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 39, 40, Start Serial: JJC0250200

2шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

41

330905A1

TUBE,0.25" OD, 60, 51 mm Length

Transmission Release, Supply, No Longer Available, Order Hose 87414064, Serial Range: -JJC0250199

2шт.

41

87414064

HOSE,6.35mm ID x 510mm L

510 mm (20 in), Replaces 330905A1, Start Serial: JJC0250200

2шт.

42

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6

2шт.

43

408846A1

HOSE

300 mm (13 in), Cut From 1541952C1

1шт.

44

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes 45

1шт.

45

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

46

408847A1

HOSE

450 mm (17-3/4 in), Cut From 1541953C1

1шт.

47

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

1шт.

48

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Inc. O-ring

1шт.

49

127983A1

HYDRAULIC HOSE,25.40 mm ID x 430.00 mm

Cut from 1541952C1

1шт.

50

127936A2

BRACKET

Control Cable

1шт.

51

430643A1

LEVER ASSY.

Large

1шт.

52

430647A1

LEVER ASSY.

Small

1шт.

53

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

54

418467A1

ROD

1шт.

55

425-155

JAM NUT,Jam, 5/16"-24, G5

2шт.

56

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

57

432-612

COTTER PIN,3/32" x 3/4"

2шт.

58

166506C1

GASKET,0.81mm Thk

1шт.

59

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1/2 x 1-1/2; 8

4шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

61

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

62

408731A1

VALVE, PRESSURE RELI

EF Service With Ref 68

1шт.

63

408733A1

SOLENOID

Service With Ref 68

1шт.

64

237130A1

COIL

1шт.

65

278548

PLUG,Hex, 7/16"-20 ORB

4шт.

66

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.

67

425-105

NUT,5/16"-18, G5

2шт.

68

408734A1

PACKAGE,SERVICE

Inc. 69 - 71

1шт.

69

NSS

NOT SOLD SEPARAT

O-RING

1шт.

70

NSS

NOT SOLD SEPARAT

O-RING

1шт.

71

NSS

NOT SOLD SEPARAT

RING, Backup

1шт.

72

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

73

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

74

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

75

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16; 5

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
