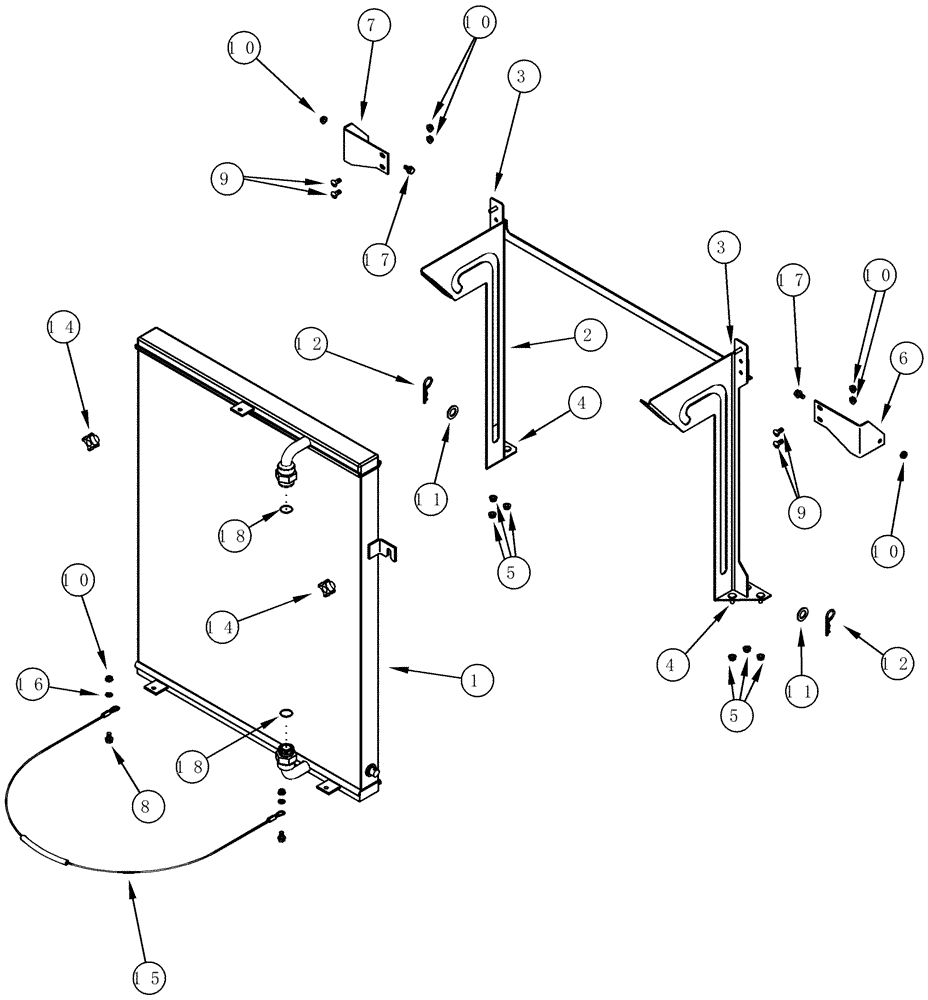

Запчасти Case IH CPX610 (06-02) - OIL COOLER MOUNTING (03) - POWER TRAIN

1

291790A2

COOLER

Oil, Inc 18

1шт.

2

358382A3

SUPPORT

Oil Cooler, Inc. 3, 4, Serial Range: -JJC0250200

1шт.

2

358382A4

SUPPORT

Oil Cooler, Inc. 3, 4, Start Serial: JJC0250200

1шт.

3

51-13116

STUD

5/16 x 1

2шт.

4

51-13112

STUD

5/16 x 3/4 in

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

6

358954A1

BRACKET

Oil Cooler, Right Hand

1шт.

7

358974A1

BRACKET

Oil Cooler, Left Hand

1шт.

8

905-8016

BOLT,Hex Flg, M8 x 16mm

, Serial Range: -JJC0250200

2шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0250200

2шт.

9

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

M8 x 20, 10.9, Serial Range: -JJC0250200

4шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

, Start Serial: JJC0250200

4шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

, Serial Range: -JJC0250200

8шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0250200

8шт.

11

895-11018

WASHER,M18 x 34 x 3

20 x 34 x 3, Serial Range: -JJC0250200

2шт.

11

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64, Start Serial: JJC0250200

2шт.

12

480523R1

HAIR PIN COTTER

2шт.

14

254610A1

KNOB

2шт.

15

302134A1

CABLE,1397mm L

Tether

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Serial Range: -JJC0250200

2шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Start Serial: JJC0250200

2шт.

17

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20, Serial Range: -JJC0250200

2шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0250200

2шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
