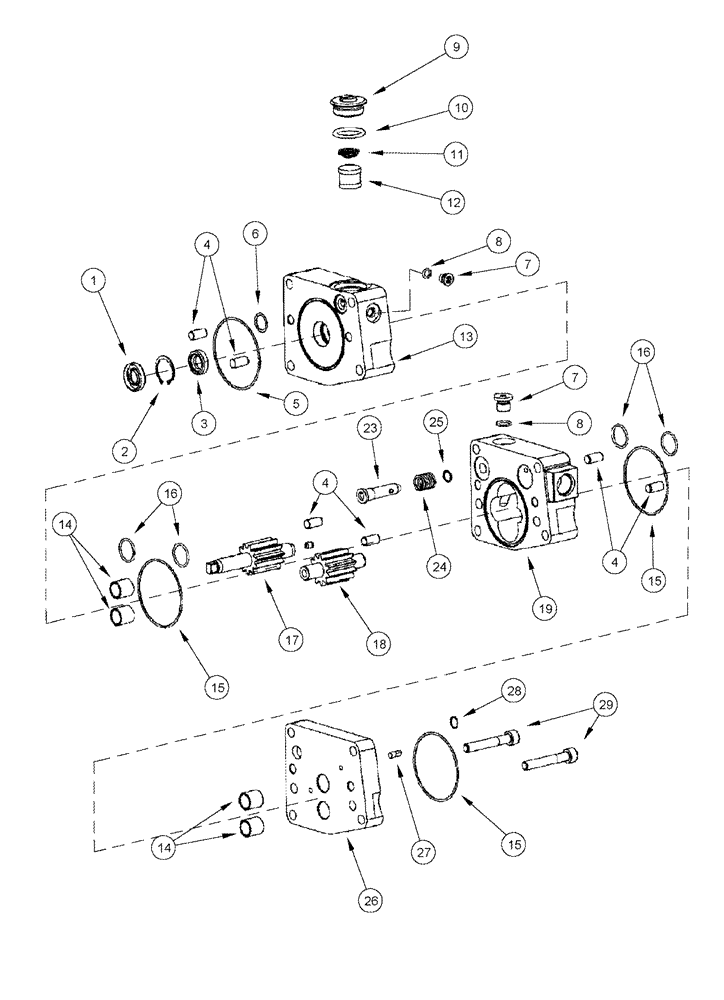

Запчасти Case IH CPX610 (03-09) - FUEL INJECTION PUMP (02) - FUEL SYSTEM

J4010267

REPAIR KIT

Gear Pump, Inc. 1 - 29

1шт.

JR4010267

REPAIR KIT

Gear Pump, Remanufactured, N.A. Only

1шт.

JC4010267

CORE

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL

1шт.

2

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

PIN, Dowel

6шт.

5

J867642

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

6

J867641

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

7

J678610

PLUG

Inc. 8

2шт.

8

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

9

J4009979

CAP

1шт.

10

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

3/4 OD Tube

1шт.

11

J70700

SPRING

1шт.

12

J146483

FILTER

Filter

1шт.

13

NSS

NOT SOLD SEPARAT

COVER

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

15

J867645

O-RING,0.07" Thk x 2.364" ID

3шт.

16

J3066914

O-RING,0.07" Thk x 0.739" ID

4шт.

17

NSS

NOT SOLD SEPARAT

SHAFT, Drive

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

A77972

KIT

Plunger, Inc. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING

1шт.

25

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

26

NSS

NOT SOLD SEPARAT

COVER

1шт.

27

NSS

NOT SOLD SEPARAT

PIN

1шт.

28

J867480

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT

2шт.
