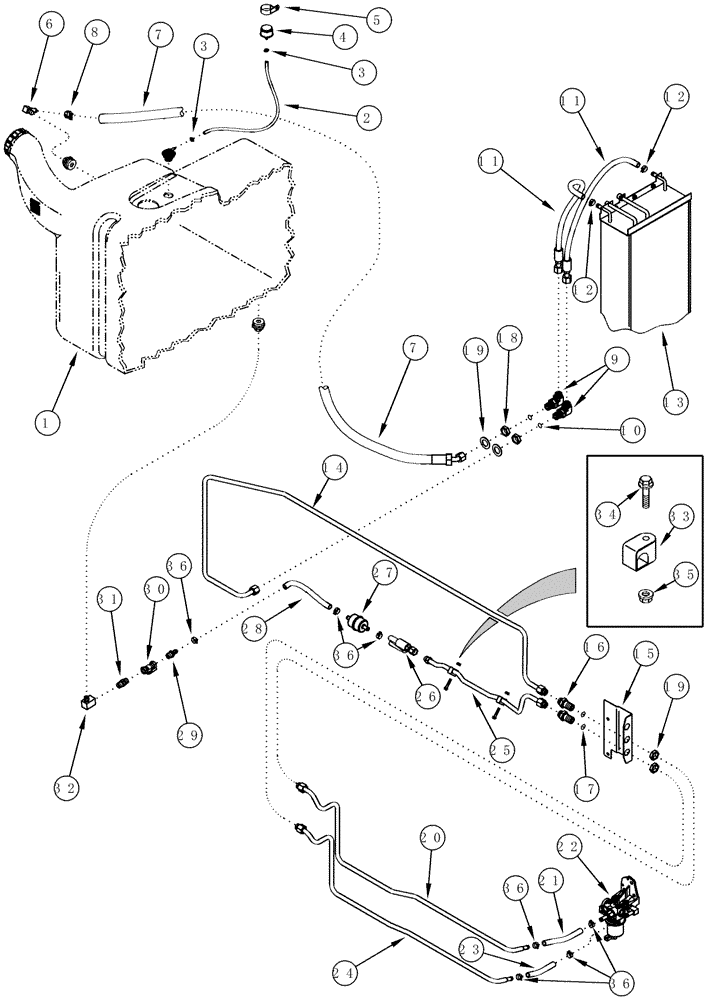

Запчасти Case IH CPX610 (03-02) - FUEL LINES (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
316885A1
FUEL TANK
200 gal, Serial Range: -JJC0250200
1шт.
See Figure 03-01
1шт.
1
316885A3
TANK
Fuel, 200 gal, Start Serial: JJC0250200
1шт.
See Figure 03-01
1шт.
2
433745A1
FUEL HOSE,680.00 mm, SAE J844C
Cut From 74813C2
1шт.
3
214-1704
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
2шт.
4
316078A2
BREATHER
1шт.
5
515-23412
CLAMP,1 5/8", Insul, 3/8" Bolt
1шт.
6
217-332
FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF
90 barb x 3/8 NPTF
1шт.
7
399795A1
HOSE
651 mm (25-5/8 in)
1шт.
9
201-346
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS
Includes 10
2шт.
10
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
11
399796A1
HOSE
633 mm (24-15/16 in)
2шт.
12
196252A1
CLAMP
2шт.
13
321103A2
CONDENSER
Fuel/Condenser
1шт.
14
388101A2
TUBE
1шт.
15
406285A1
SUPPORT
1шт.
16
201-123
HYD CONNECTOR,1"-14, Blkhd, ORFS
Inc. 17
2шт.
17
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
18
201-919
BHD LOCK NUT,1" - 14
4шт.
19
495-11106
WASHER,1", SAE
(1-1/16 x 2 x 1/8")
2шт.
20
389611A2
FUEL TUBE
1шт.
21
399799A1
HOSE
204 mm (8 in), Fuel Return
1шт.
22
J949093
FEED PUMP
Fuel Transfer
1шт.
See Figure 03-04
1шт.
23
399798A1
HOSE
145 mm (5-45/64 in)
1шт.
24
389612A2
FUEL TUBE
1шт.
25
388099A2
TUBE
1шт.
26
399800A2
HOSE
450 mm (17-23/32 in), Supply
1шт.
27
194199A1
FUEL FILTER
1шт.
28
408556A1
HOSE
258 mm (10-5/32 in)
1шт.
29
217-170
FITTING,1/2" Hose Barb x 1/2" Male NPTF
1шт.
30
1345205C1
SHUT-OFF VALVE
Shut-Off
1шт.
31
217-196
FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF
1/2 PT x 1-13/16
1шт.
32
217-1095
ELBOW,90 Degree, 3/8"-18 Male x 1/2"-14 Female
1шт.
33
183822C1
CLAMP
5/8 in
2шт.
34
409-7424
BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl
1/4 x 1-1/2
2шт.
35
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
2шт.
36
214-1706
HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm
7шт.
Выбрано товаров: 40
