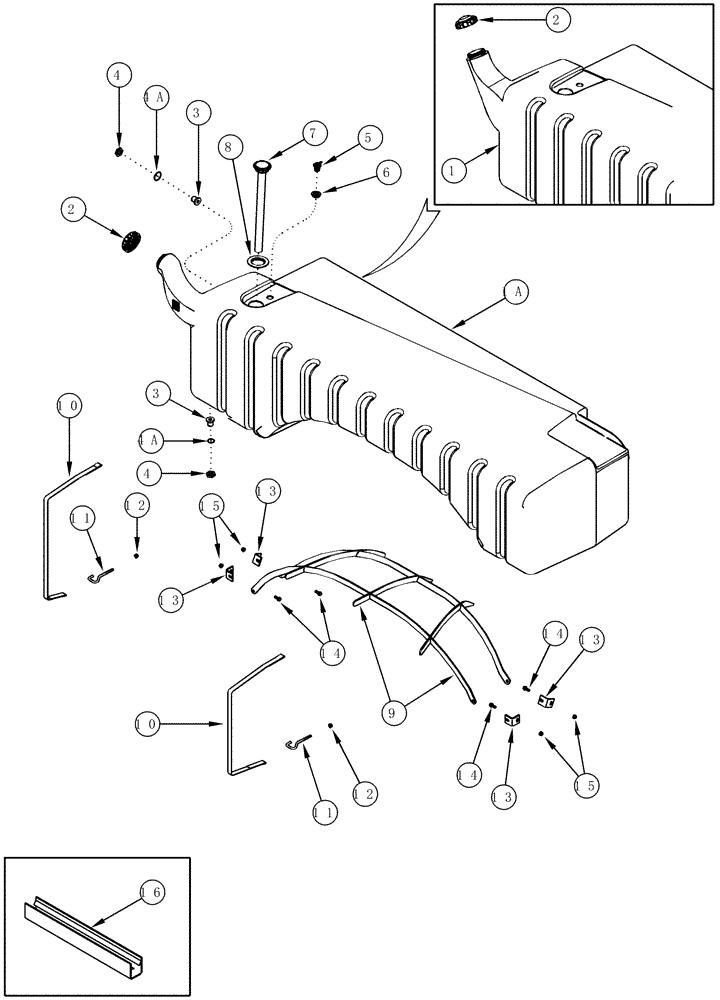

Запчасти Case IH CPX610 (03-01) - FUEL TANK AND SUPPORTS (02) - FUEL SYSTEM

1

316885A1

FUEL TANK

200 gal, Inc. 2 - 6, Serial Range: -JJC0250200

1шт.

1a

316885A3

TANK

Fuel, 200 gal, Inc. 2 - 6, Start Serial: JJC0250200

1шт.

2

257349A1

FILLER CAP

Inc. One Gasket

1шт.

3

282708A1

FITTING

2шт.

4

282709A1

NUT

2шт.

4a

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

5

275800A1

VALVE STEM

1шт.

6

255094A1

GROMMET

1шт.

7

397966A1

SENDER UNIT

SENDER Fuel Level

1шт.

8

255095A1

GROMMET

1шт.

9

434763A1

SUPPORT

Fuel Tank

1шт.

10

353858A1

STRAP

Mounting

2шт.

11

353851A2

SPECIAL BOLT

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

434773A1

ANGLE

4шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

236211A1

PROTECTION STRIP

38 mm (1-1/2 in), Cut From 1330108CX

1шт.

16

228634A1

PROTECTION STRIP

89 mm (3-1/2 in), Cut From 1330108CX

4шт.

16

236210A1

PROTECTION STRIP

114 mm (4-1/2 in), Cut From 1330108CX

5шт.

16

122150A1

PROTECTION STRIP

179 mm (7 in), Cut From 1330108CX

5шт.

16

237682A1

PROTECTION STRIP

305 mm (12 in), Cut From 1330108CX

12шт.
