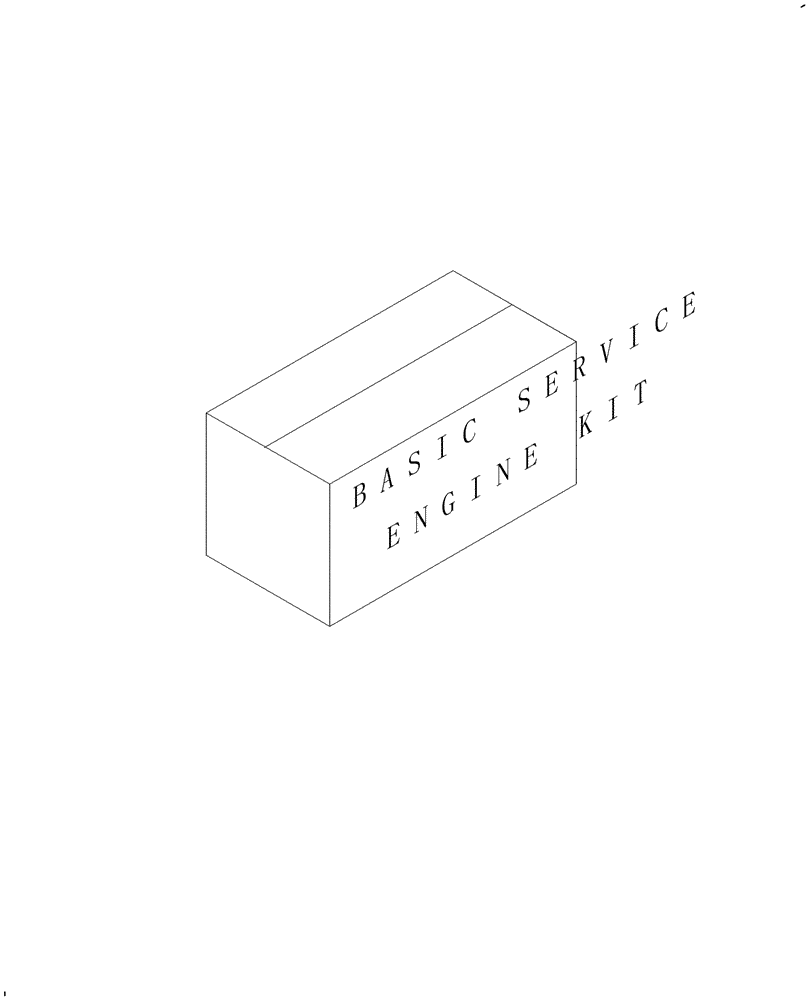

Запчасти Case IH CPX610 (02-28) - GASKET KIT - BASIC SERVICE ENGINE (01) - ENGINE

A78003

GASKET KIT

Inc. 1 - 24

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

5

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

2шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

7

J330081

O-RING

1шт.

8

J330202

O-RING,11.3MM ID x 2.2 Thk

2шт.

9

J330478

O-RING,0.07" Thk x 0.676" ID

2шт.

10

J678603

O-RING,2.2mm Thk x 9.3mm ID

2шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

12

J867043

SEAL,1.78mm Thk x 10.82mm ID

6шт.

13

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

14

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm

6шт.

15

J911941

GASKET

Turbocharger Mounting

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

17

J917892

GASKET,0.79mm Thk

1шт.

18

J919369

GASKET,0.5mm Thk

1шт.

19

J939258

GASKET,1.21mm Thk

1шт.

20

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm, Replaces J935171

4шт.

21

J937479

MANIFOLD GASKET

Exhaust Manifold

6шт.

22

J944646

MANIFOLD GASKET

1шт.

23

J944647

GASKET

1шт.

24

J944683

GASKET

Breather

1шт.

25

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.
