Запчасти Case IH CPX610 (02-23) - CRANKSHAFT (01) - ENGINE

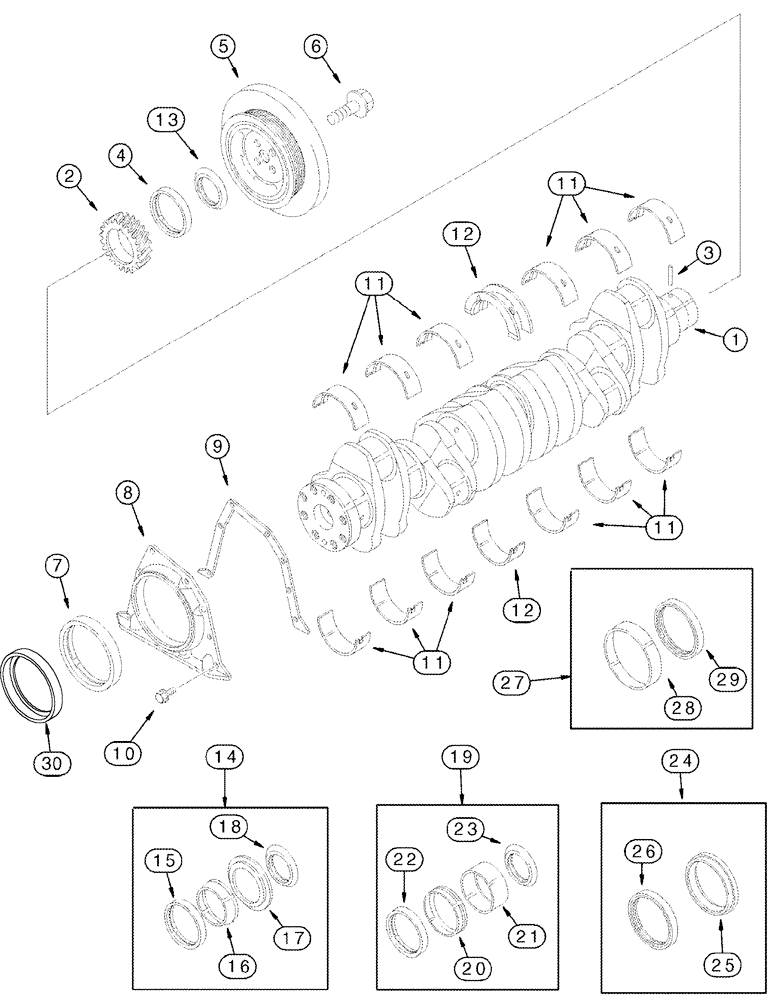

Схема запчастей Case IH CPX610 - (02-23) - CRANKSHAFT (01) - ENGINE
3
6
20
18
21
30
16
8
28
11
19
5
23
13
9
7
2
25
11
14
22
27
11
24
1
29
12
4
17
26
15
10
12
11

Артикул

Название

Примечание

Количество

J918986

CRANKSHAFT

6TAA-8304, Inc. 1 - 3

1шт.

JR918986

REMAN-CRANKSHAFT

6TAA-8304, N.A. Only, Inc. 1- 3

1шт.

JC918986

CORE-CRANKSHAFT

6TAA-8304, Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Crankshaft

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order A77790

1шт.

See Figure 02-23

1шт.

5

J943660

PULLEY

Fan

1шт.

5a

J914119

DAMPER

Vibration

1шт.

6

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 60

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order J934486

1шт.

See Figure 02-23

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Oversize 0,25 mm

6шт.

11

J945932

BEARING SET

Main, Oversize 0,50 mm

6шт.

11

J945933

BEARING SET

Main, Oversize 0,75 mm

6шт.

11

J945934

BEARING SET

Main, Oversize 1,00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Oversize 0,25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Oversize 0,50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Oversize 0,75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Oversize 1,00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL

1шт.

30

87423334

SEAL,129.5mm ID x 148.45mm OD x 6.5mm Thk

Dust

1шт.

Выбрано товаров: 47
