Запчасти Case IH CPX610 (02-18) - CYLINDER HEAD VALVE MECHANISM (01) - ENGINE

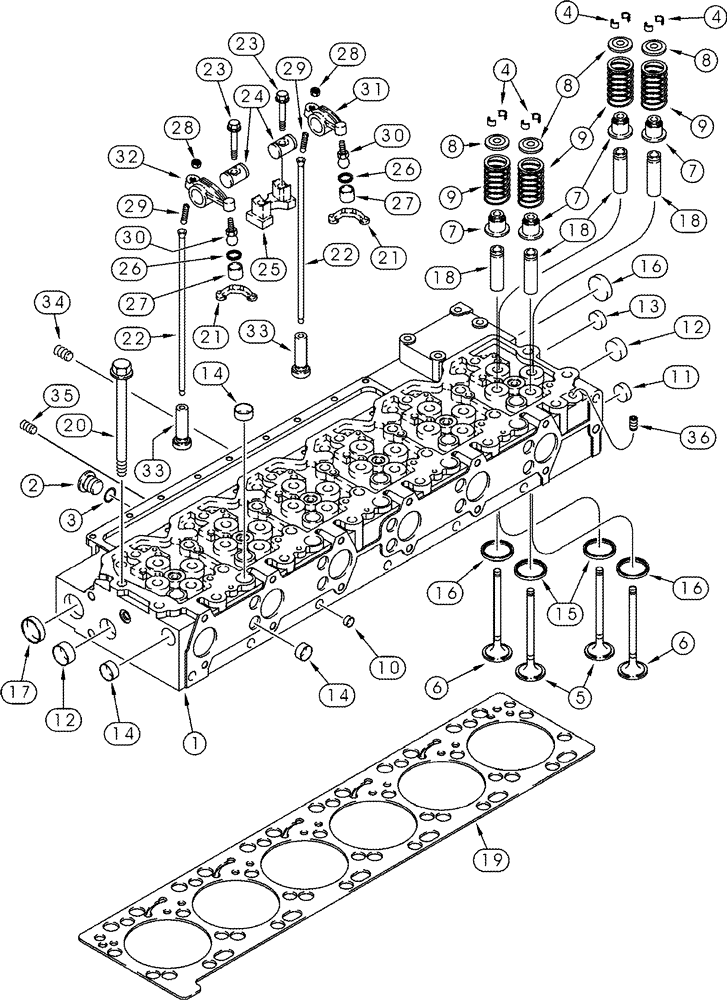

Схема запчастей Case IH CPX610 - (02-18) - CYLINDER HEAD VALVE MECHANISM (01) - ENGINE
13
1
18
5
32
19
33
22
17
33
9
27
23
18
27
7
20
2
8
35
15
16
31
6
12
4
21
26
4
8
28
30
12
29
6
26
25
36
10
9
30
21
8
16
4
14
7
28
34
18
14
29
22
3
11
24
9
7
14
16
23

Артикул

Название

Примечание

Количество

J948583

CYLINDER HEAD

With Valves, Inc. 1 - 18

1шт.

JR948583

REMAN-CYLINDER HEAD

1шт.

JC948583

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J945022

CYLINDER HEAD

Without Valves, Inc. 10 - 18

1шт.

2

J678923

PLUG,M10 x 1

10 mm, Inc. 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

CASJ900250

RETAINER

48шт.

5

J942588

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

6

J942589

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

7

J943888

SEAL

Valve

24шт.

8

J944452

RETAINER

24шт.

9

J944711

VALVE SPRING

Valve

24шт.

10

A77552

PLUG

11.5 mm

6шт.

11

A77590

PLUG

28.7 mm

2шт.

12

J900955

PLUG

10 mm OD

1шт.

13

J907555

PLUG

1/4-18 PT

1шт.

14

J920706

PLUG

22 mm OD

17шт.

15

J940152

INSERT

Intake

12шт.

16

J940153

INSERT

Exhaust

12шт.

17

41-1624

PLUG,Cup, 1 1/2", Stainless

38 mm

2шт.

18

J948102

VALVE GUIDE

24шт.

19

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

20

J917728

BOLT

160 mm

26шт.

21

J943445

CROSSBAR

Crosshead

12шт.

22

J944174

PUSH ROD

6TAA-8304

12шт.

23

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

68 mm

2шт.

24

J941137

SHAFT

12шт.

25

J941140

SUPPORT

6шт.

J942748

ROCKER ARM

Intake, Inc. 26 - 31

6шт.

J942749

ROCKER ARM

Exhaust, Inc. 26 - 30, 32

6шт.

26

J942729

CLIP, WIRE

1шт.

27

NSS

NOT SOLD SEPARAT

SOCKET

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J941209

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

1шт.

30

NSS

NOT SOLD SEPARAT

BALL

1шт.

31

NSS

NOT SOLD SEPARAT

ROCKER ARM, Intake

1шт.

32

NSS

NOT SOLD SEPARAT

ROCKER ARM, Exhaust

1шт.

32

NSS

NOT SOLD SEPARAT

LEVER, Exhaust

1шт.

33

J945866

TAPPET

6TAA-8304

12шт.

34

A77505

PLUG

3/4 PT

4шт.

35

A77429

PLUG

1/2 PT

7шт.

36

A77428

PLUG

1/4 PT

1шт.

Выбрано товаров: 42
