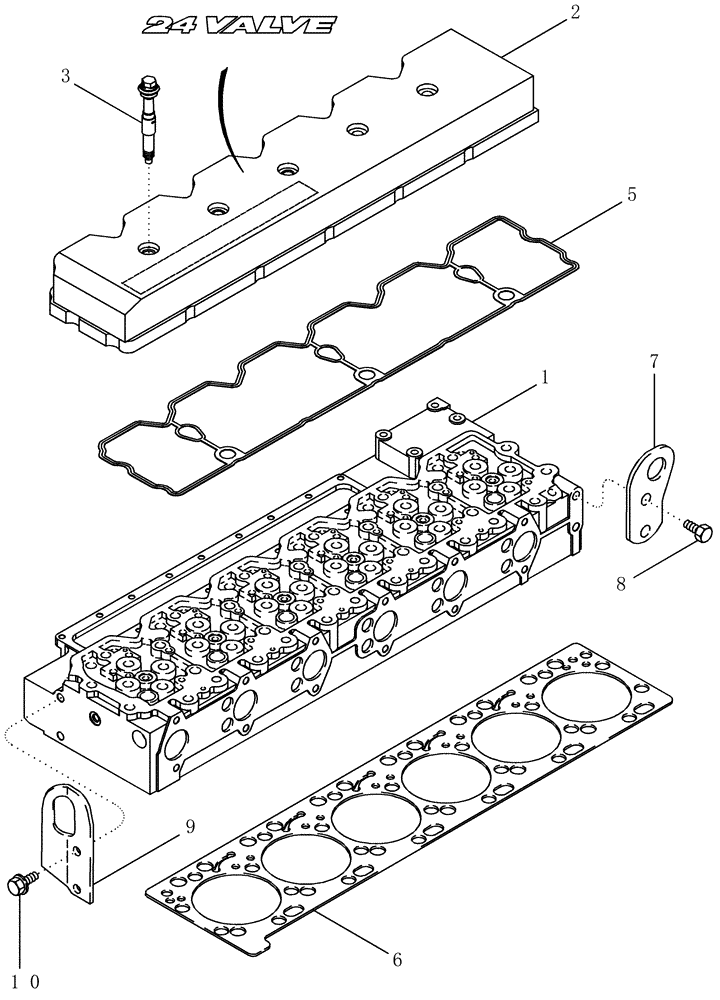

Запчасти Case IH CPX610 (02-17) - CYLINDER HEAD COVER (01) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder

1шт.

See Figure 02-18

1шт.

2

J938445

VALVE COVER

1шт.

3

J990876

ISOLATOR

Valve Cover Screw, Replaces Kit A78024

5шт.

5

J939284

GASKET

Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

Front

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

J944290

BRACKET

Rear

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

M12 x 25; 10.9

2шт.

11

87429619

FILLER CAP

Oil, (Not Shown)

1шт.
