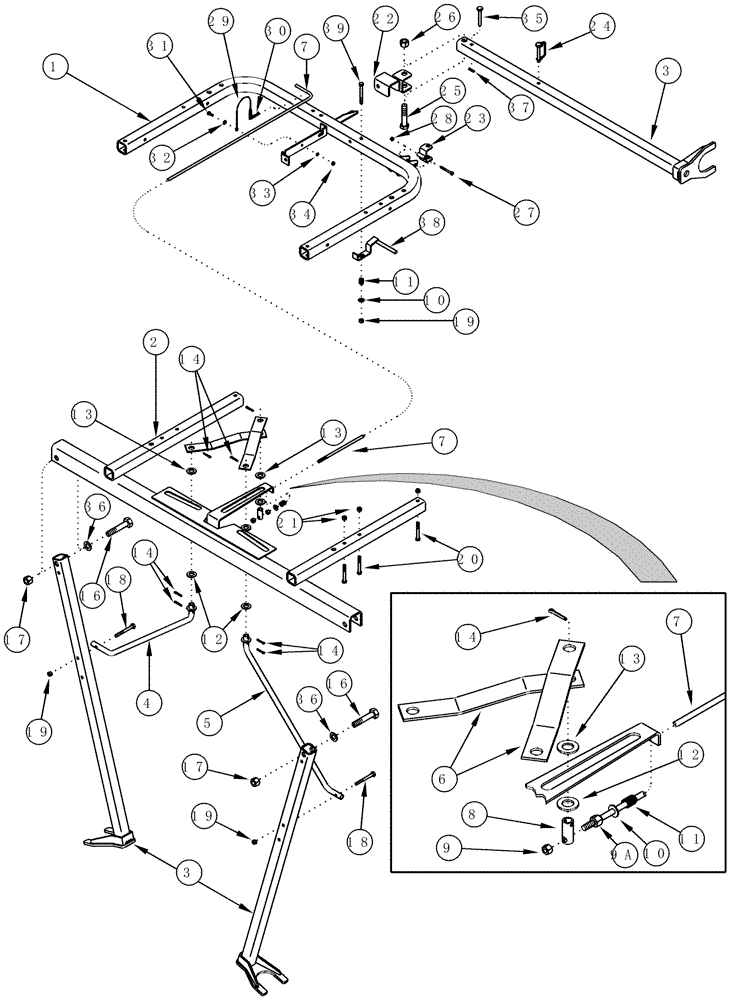

Запчасти Case IH CPX610 (09D-20) - BASKET LID, LIFT (16) - BASKET

1

362664A4

TUBE,820.1 mm Length

Hand Rail

1шт.

2

294391A2

SUPPORT

Basket Lid Lift

1шт.

3

311175A2

SUPPORT

Basket Lid Lift

3шт.

4

430196A1

TUBE

Basket Lid, Left Hand Rear

1шт.

5

430207A1

TUBE

Basket Lid, Right Hand Rear

1шт.

6

411732A2

STRAP

2шт.

7

430205A2

ROD

1шт.

8

411733A2

TUBE

1шт.

9

231-4146

NUT,3/8"-16, GB

1шт.

9a

425-106

NUT,3/8"-16, Cl 5

1шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

11

540815R2

SPRING

2шт.

12

495-81037

WASHER,25/32" x 1 1/4" x .060"

3шт.

13

430194A1

WASHER

13/16 x 1-15/32 x 1/8

3шт.

14

432-1216

COTTER PIN,3/16" x 1"

5шт.

16

426-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

3/4 x 3-3/4; 8

2шт.

17

231-41112

LOCK NUT,3/4"-10, GB

2шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

.375 X 3.5 UNC GR5 YZD

2шт.

19

231-4146

NUT,3/8"-16, GB

3шт.

20

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

6шт.

21

231-4146

NUT,3/8"-16, GB

6шт.

22

430198A1

BRACKET

Basket Lid, Front

1шт.

23

430204A1

CHANNEL

Storage

1шт.

24

436755A1

PIN,9.53mm OD

3/8

1шт.

25

426-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

3/4 x 3-3/4; 8

1шт.

26

231-41112

LOCK NUT,3/4"-10, GB

1шт.

27

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

28

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

29

416624A1

ROPE

1/4 x 12 in, nylon

2шт.

30

586591R1

COTTER PIN

1/8

2шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

32

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

33

492-11025

LOCK WASHER,1/4"

1шт.

34

425-104

NUT,1/4"-20, Cl 5

1шт.

35

427-6325

CLEVIS PIN,3/8" x 3 1/4"

1шт.

36

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

2шт.

37

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

38

432256A1

LOCK

Handrail

1шт.

39

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

.375 X 3.5 UNC GR5 YZD

1шт.
