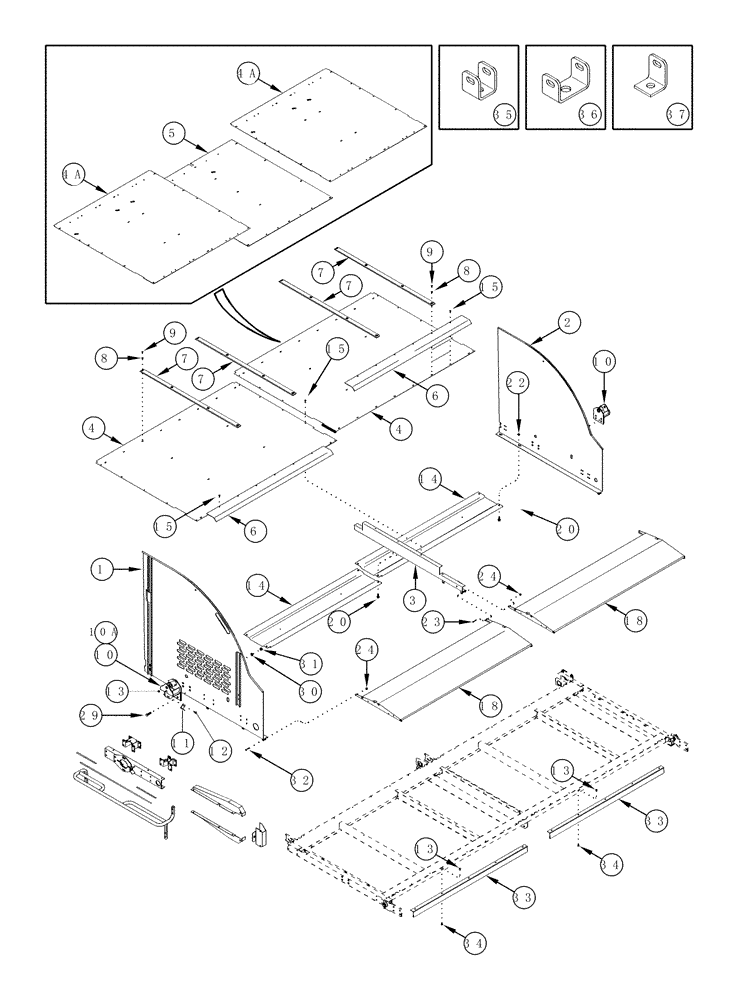

Запчасти Case IH CPX610 (09D-18) - BASKET DOOR, COVERS AND SHIELDS (16) - BASKET

1

279537A1

SHIELD

Basket Floor Side, Front, Serial Range: -JJC0250100

1шт.

1

449783A1

SHIELD

Basket Floor Side, Front, Shown, Start Serial: JJC0250100

1шт.

See Figure 9D-18A

1шт.

2

279538A2

SHIELD

Basket Floor Side, Rear

1шт.

3

391611A1

CHANNEL

Basket Floor, Center

1шт.

4

314889A3

SHEET

Top Cover, Serial Range: -JJC0250245

2шт.

4a

86990567

SHEET ASSY.

SHEET Basket Door Front and Rear, Start Serial: JFG010501

2шт.

5

87435236

SHEET ASSY.

SHEET Basket Door Center, Start Serial: JFG010501

1шт.

6

238061A2

SHIELD

Chain

2шт.

7

300225A1

SLIDE

Basket Floor, Slat

4шт.

8

495-81107

WASHER,.281" x 7/8" x .060"

9/32 x 7/8 x 1/16

16шт.

9

375677A1

RIVET

1/4 x 5/8

12шт.

9b

231-1444

NUT,1/4"-20, GB

4шт.

10

257599A3

BRACKET

Cylinder Bracket, Lower

1-2шт.

10a

407932A2

BRACKET

Cylinder Bracket, Serial Range: -JJC0250100

1шт.

11

431796A1

BRACKET

Line Support

1шт.

12

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

14

313129A1

PANEL

Basket Floor, Outer

2шт.

15

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 x 3/8

39шт.

18

315745A2

EXTENSION

Order Accessory Kit 87404880, Serial Range: -JJC0250199

2шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

22

488837C1

SPRING NUT

5/16

4шт.

23

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Included in Kit 87404880, Serial Range: -JJC0250199

2шт.

24

230-4244

LOCK NUT,1/4"-20, GA

Included in Kit 87404880, Serial Range: -JJC0250199

6шт.

27

492-11038

LOCK WASHER,3/8"

26шт.

28

425-106

NUT,3/8"-16, Cl 5

26шт.

29

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

8шт.

30

492-11062

BEARING WASHER,5/8"

8шт.

31

429-1010

NUT,5/8"-11, G8

8шт.

32

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Included in Kit 87404880, Serial Range: -JJ0250199

4шт.

33

444263A1

BRUSH, COMMUTATOR

BRUSH Door Strut, Start Serial: JJC0250200

2шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

35

315737A2

CHANNEL

Door Extension

4шт.

36

315738A2

CHANNEL

Door Extension

2шт.

37

315740A2

ANGLE

Door Extension

2шт.

9a

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
