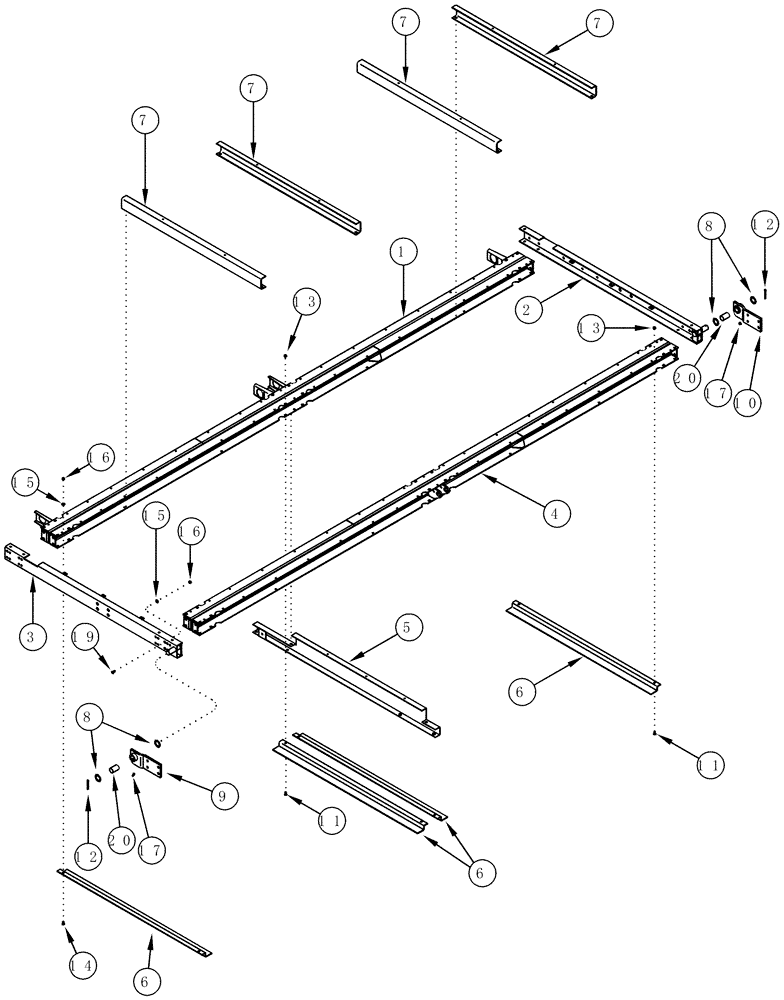

Запчасти Case IH CPX610 (09D-17) - BASKET DOOR, FRAME - ASN JJC0250100 (16) - BASKET

1

448349A2

STRUT

Left Hand

1шт.

2

449785A2

CHANNEL

Door Front

1шт.

3

448931A3

CHANNEL

CHANNEL Door Rear

1шт.

4

448348A2

STRUT

Right Hand

1шт.

5

391611A2

CHANNEL

CHANNEL Door Center

1шт.

6

127164A2

SUPPORT

Door Chain

4шт.

7

448441A1

CHANNEL

4шт.

8

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-9/32 x 2 x 1/16

6шт.

9

300027A1

PIVOT

Basket Floor Rear, Inc. 20

1шт.

10

300028A1

PIVOT

Basket Floor Front, Inc. 20

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

18шт.

12

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

15

492-11038

LOCK WASHER,3/8"

20шт.

16

425-106

NUT,3/8"-16, Cl 5

21шт.

17

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

20

458900R1

SPACER

2шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

16шт.
