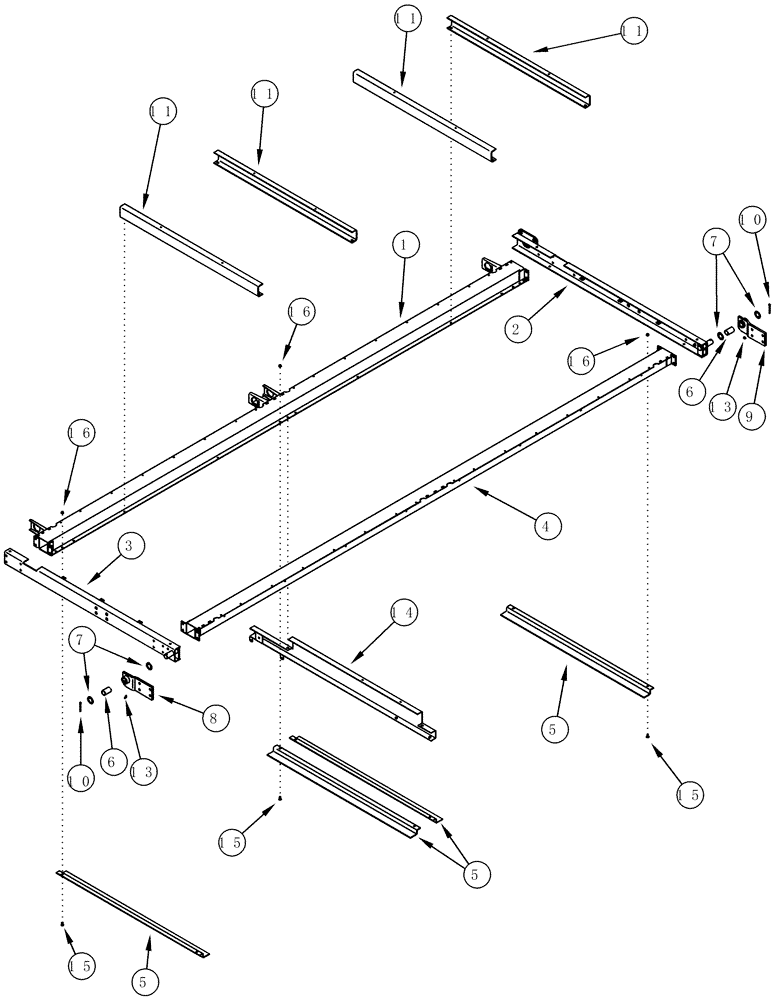

Запчасти Case IH CPX610 (09D-16) - BASKET DOOR, FRAME - BSN JJC0250100 (16) - BASKET

1

314595A1

STRUT

1шт.

2

278099A1

CHANNEL

Door Front

1шт.

3

299434A4

CHANNEL

Door Rear

1шт.

4

314593A1

STRUT

1шт.

5

127164A2

SUPPORT

Door Chain

4шт.

6

458900R1

SPACER

2шт.

7

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-9/32 x 2 x 3/64

6шт.

8

300027A1

PIVOT

Basket Floor, Inc. 6

1шт.

9

300028A1

PIVOT

Basket Floor, Inc. 6

1шт.

10

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

11

316092A1

CHANNEL

Basket Floor Support

4шт.

13

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

2шт.

14

391611A1

CHANNEL

Center

1шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.
