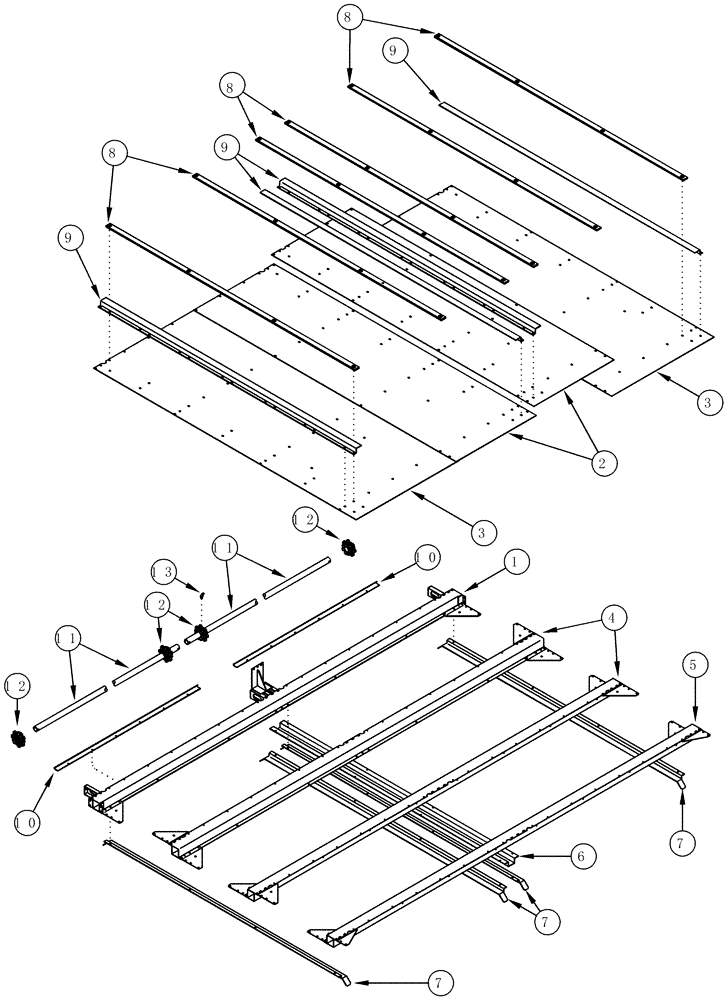

Запчасти Case IH CPX610 (09D-14) - BASKET, FLOOR - BSN JJC0250100 (16) - BASKET

1

314594A1

STRUT

Basket Floor, Right Hand

1шт.

2

314887A2

SHEET

Basket Floor, Inner

2шт.

3

314888A2

SHEET

Basket Floor, Outer

2шт.

4

314597A1

STRUT

Basket Floor, Center

2шт.

5

314596A1

STRUT

Basket Floor, Left Hand

1шт.

6

1278058C1

SUPPORT

1шт.

7

251600A1

GUARD

Basket Floor Chain

4шт.

8

314632A1

SLIDE

Basket Floor Slats

6шт.

9

251287A1

ANGLE

Guide

4шт.

10

314634A1

SHEET

Basket Floor Chain

2шт.

11

249814A1

PIPE ASSY.

Idler Adjustment, Conveyor

2шт.

12

1270109C1

SPROCKET ASSY.

7T

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.
