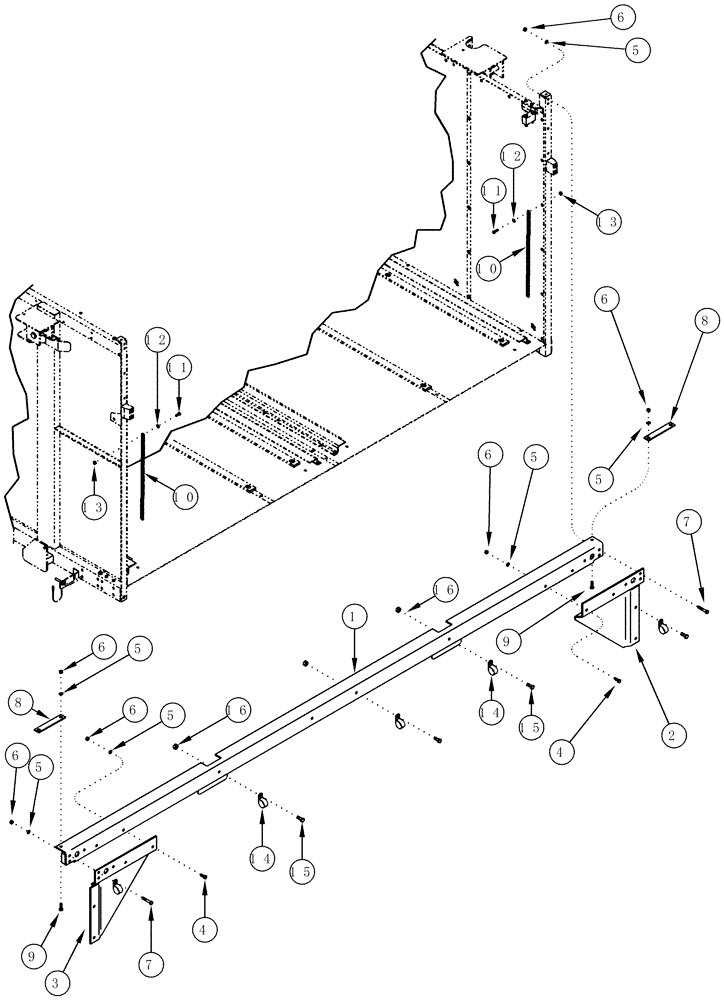

Запчасти Case IH CPX610 (09D-13) - LEFT HAND SIDE UPPER DOOR TIE (16) - BASKET

1

251564A1

CHANNEL

Left Hand Side, Upper Door Tie

1шт.

2

232530A3

PLATE

Rear Corner

1шт.

3

280631A1

PLATE

Front Corner

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

5

492-11038

LOCK WASHER,3/8"

16шт.

6

425-106

NUT,3/8"-16, Cl 5

16шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

8

284564A2

PLATE

Mounting Plate, Light

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

87235C1

CHAIN

Basket Upper Door

2шт.

11

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Harness

5шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.
