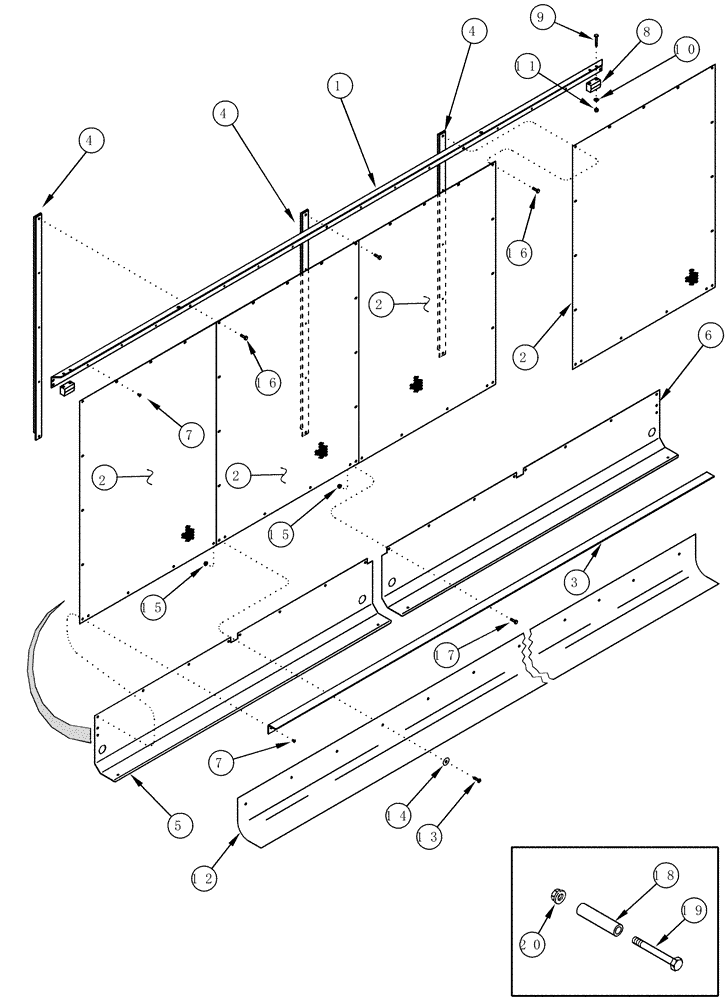

Запчасти Case IH CPX610 (09D-12) - BASKET, RIGHT HAND SIDE (16) - BASKET

1

283568A1

ANGLE

Right Hand Side, Upper

1шт.

2

284348A1

ANGLE

Right Hand Side, Serial Range: -JJC0250245

4шт.

2

86990566

ANGLE

Right Hand Side, Start Serial: JFG010501

4шт.

3

284350A1

ANGLE

Right Hand Wall, Horizontal

1шт.

4

284349A1

ANGLE

Right Hand Wall, Vertical

3шт.

5

284352A1

SHIELD

Unloader Chain, Front

1шт.

6

284351A1

SHIELD

Unloader Chain, Rear

1шт.

7

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 x 3/8

21шт.

8

222680A2

GUIDE

2шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

251130A1

FLAP

Right Hand

1шт.

13

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

11шт.

14

495-81143

WASHER,13/32" x 1 1/2" x .120"

11шт.

15

231-5146

FLANGE NUT,3/8"-16

20шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

18

21367R1

SPACER,1/4" Pipe x 2 1/2"

1/4 x 2-1/2

4шт.

19

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4; 5

4шт.

20

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

4шт.

21

284564A2

PLATE

Light Mount

1шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

5шт.
