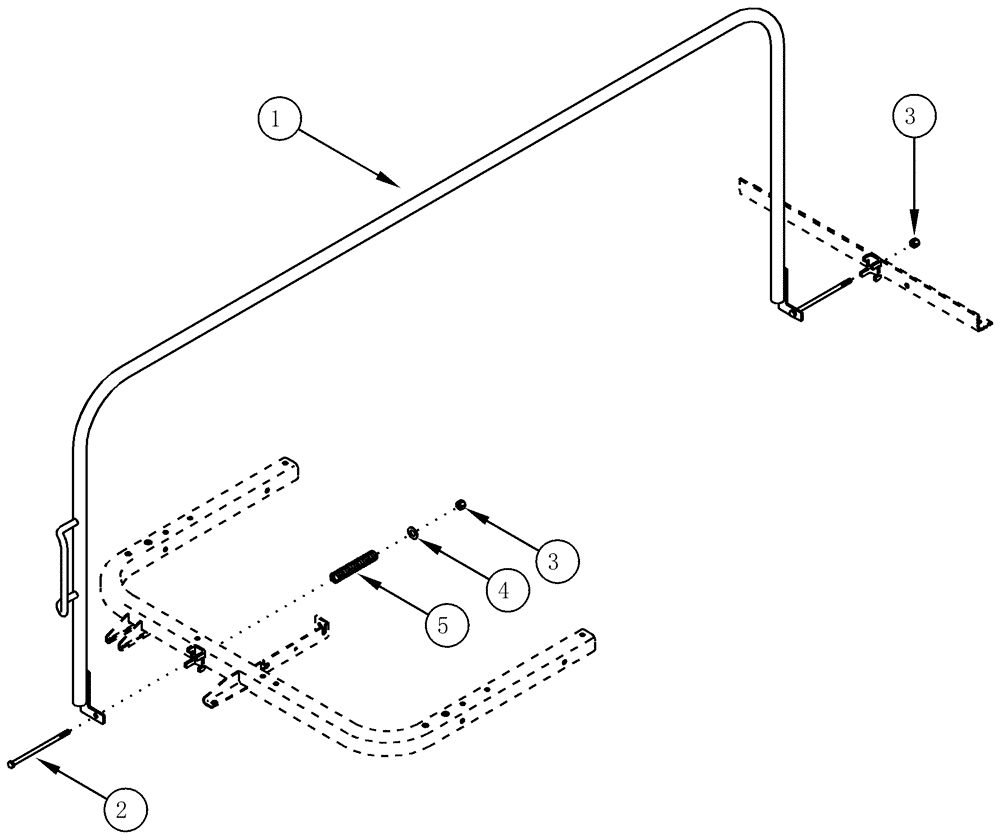

Запчасти Case IH CPX610 (09D-08) - LID, BASKET - HANDRAIL (16) - BASKET

1

364313A2

TUBE,200.6 mm Length

Basket Lid Top

1шт.

2

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8 x 5-1/2

1шт.

3

231-4146

NUT,3/8"-16, GB

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

5

418183A1

SPRING

3-1/2 in

1шт.
