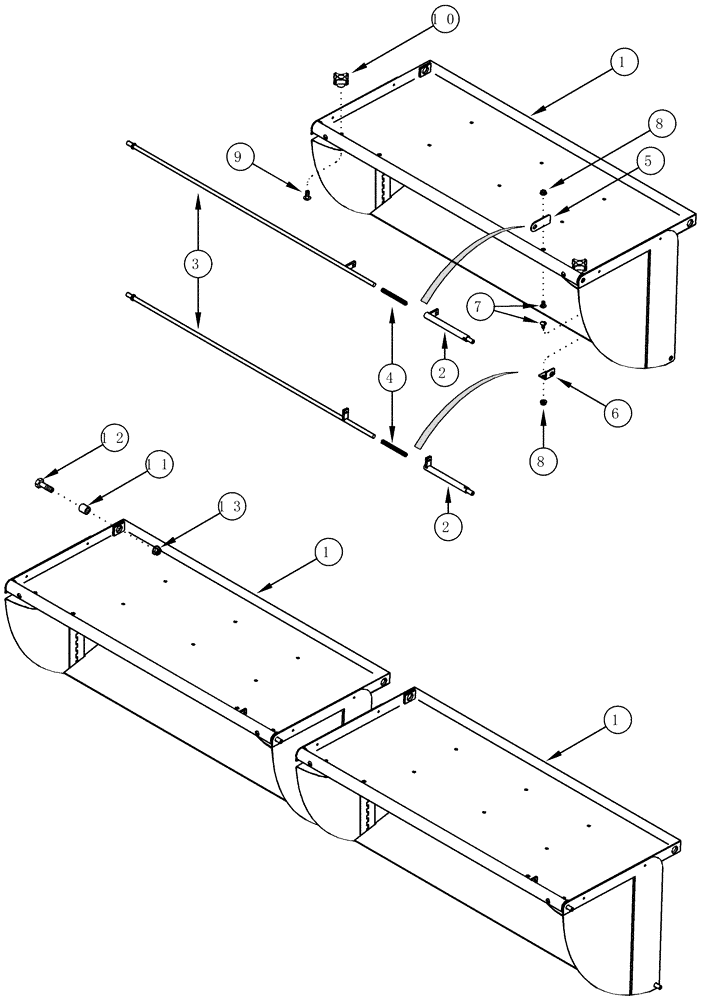

Запчасти Case IH CPX610 (09D-07) - LID, BASKET - HINGE (16) - BASKET

319946A2

HOOD Inc. 1 - 10, Order Components

3шт.

1

360040A2

HOOD

With Flares

1шт.

2

335967A1

ROD ASSY.

2шт.

3

321250A1

ROD ASSY.

Hood Lock

2шт.

4

10322R

SPRING

2шт.

5

321153A1

ANGLE

1шт.

6

321213A1

ANGLE

Hood Lock, Lower

1шт.

7

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

10

254610A1

KNOB

2шт.

11

199804C1

SPACER

Slip Clutch

6шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

13

231-5146

FLANGE NUT,3/8"-16

(5)

6шт.
