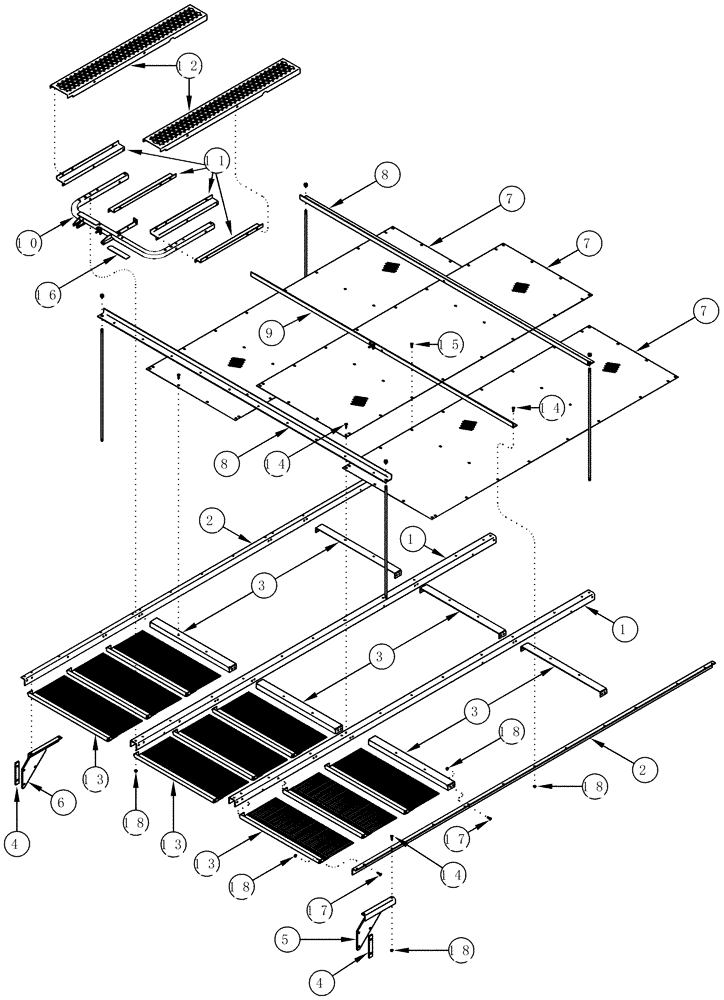

Запчасти Case IH CPX610 (09D-06A) - LID, BASKET - TOP - ASN JJC0250200 (16) - BASKET

1

248858A2

CHANNEL

Basket Grate Support

2шт.

2

248851A2

ANGLE

Basket Grate Support

2шт.

3

231111A2

ANGLE BAR

6шт.

4

197055A1

BAR

Basket Cylinder Mount

2шт.

5

228248A3

ANGLE

Basket Cylinder Mount, Left Hand

1шт.

6

239472A2

ANGLE

Basket Cylinder Mount, Right Hand

1шт.

7

435709A2

SHEET

Basket Lid Top

3шт.

8

280398A2

ANGLE

Front and Rear Tie

2шт.

9

362663A2

SUPPORT

Lid Handrail

1шт.

10

362664A4

TUBE,820.1 mm Length

Handrail

1шт.

11

220672A2

ANGLE

Basket Deck Walkway

4шт.

12

435288A2

STEP

2шт.

13

325244A1

DEFLECTOR

Basket Cover

9шт.

14

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

1шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

16

D55216

PAD,2" x 9"

2шт.

18

231-5146

FLANGE NUT,3/8"-16

(5)

1шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
