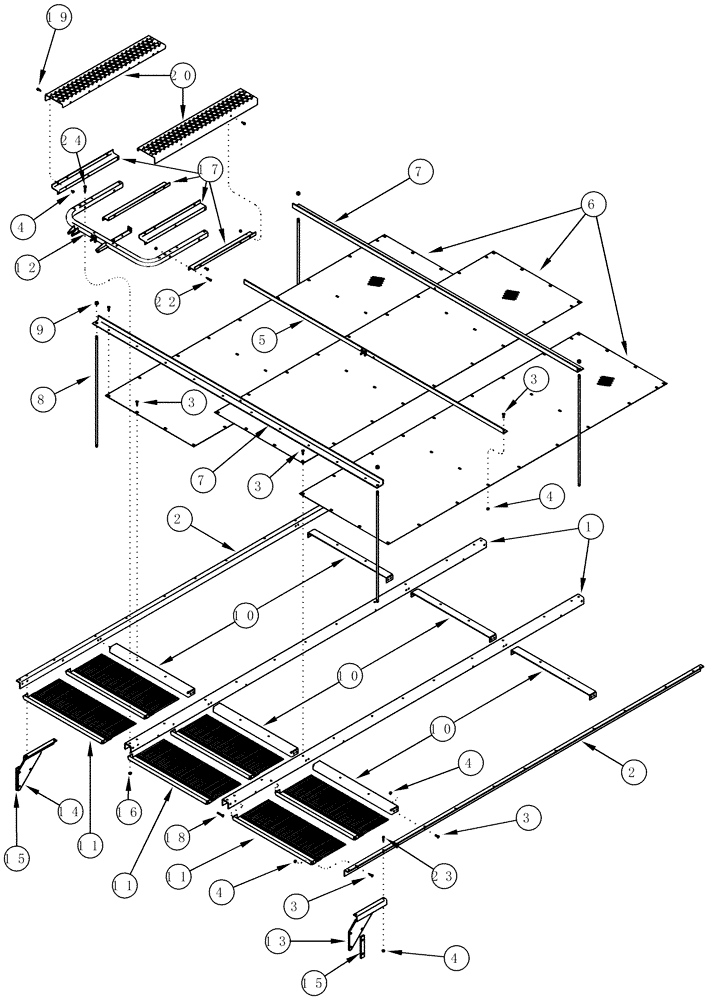

Запчасти Case IH CPX610 (09D-06) - LID, BASKET - TOP - BSN JJC0250200 (16) - BASKET

1

248858A1

CHANNEL

Basket Grate Support

2шт.

2

248851A1

ANGLE

Basket Grate Support

2шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

362663A2

SUPPORT

Handrail

1шт.

6

248856A1

SHEET

Basket Lid Top

3шт.

7

280398A2

ANGLE

Front and Rear Tie

2шт.

8

230404A3

ROD

4шт.

9

231-41110

LOCK NUT,5/8"-11, GB

8шт.

10

231111A2

ANGLE BAR

Basket Roof Filler Front

6шт.

11

325244A1

DEFLECTOR

Basket Cover

6шт.

12

362664A4

TUBE,820.1 mm Length

Handrail

1шт.

13

228248A3

ANGLE

Basket Cylinder Mount, Left Hand

1шт.

14

239472A2

ANGLE

Basket Cylinder Mount, Right Hand

1шт.

15

197055A1

BAR

Basket Cylinder Mount

2шт.

16

231-4146

NUT,3/8"-16, GB

6шт.

17

220672A2

ANGLE

Basket Top Deck

4шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

20

140768A4

STEP

2шт.

21

825-51410

FLANGE NUT,M10, Flg Ser

15шт.

22

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

23

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

4шт.

24

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

6шт.

25

D55216

PAD,2" x 9"

2 x 9 in

2шт.

26

488837C1

SPRING NUT

5/16, Speed

8шт.

27

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 1

12шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
