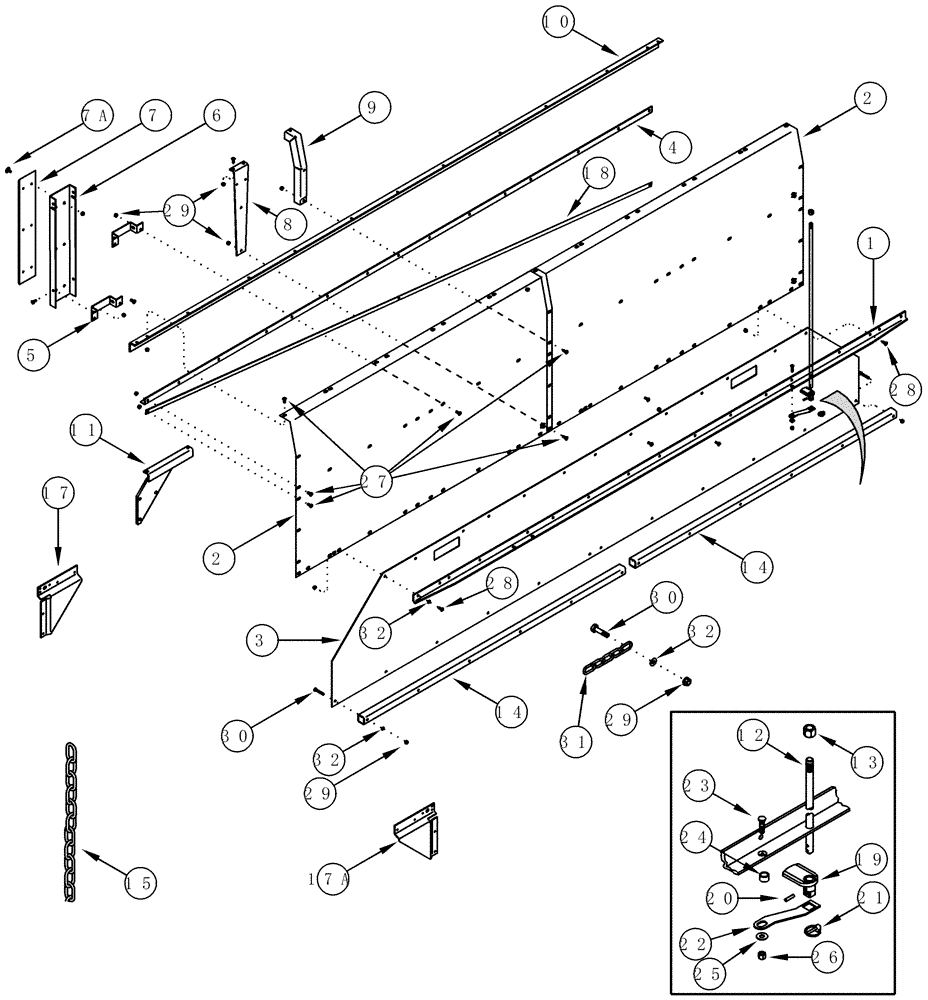

Запчасти Case IH CPX610 (09D-05) - LID, BASKET - LEFT HAND SIDE - BSN JJC0250200 (16) - BASKET

1

298190A1

ANGLE

Lower, Left, Right Side

1шт.

2

248853A1

SHEET

Left, Right Side

2шт.

3

314144A1

FLAP

Basket Door Upper

1шт.

4

248852A1

ANGLE

Extension End, Side

1шт.

5

183315A1

SUPPORT

Lid Guide

2шт.

6

183316A1

CHANNEL

Lid Guide, Long

1шт.

7

183347A2

BAR

Compactor Wear

1шт.

7a

278738A1

BOLT

5/16 x 1

6шт.

8

245271A2

ANGLE

Center Tie

1шт.

9

199815A2

ANGLE

Basket Side, Center Support

1шт.

10

248851A1

ANGLE

Basket Grate Support

1шт.

11

228248A3

ANGLE

Cylinder Mounting

1шт.

12

230404A3

ROD

Basket Top Guide

2шт.

13

231-41110

LOCK NUT,5/8"-11, GB

2шт.

14

314143A1

TUBE,2012 mm Length

2102 mm (82-3/4 in) Long, Upper Door Raise/Lower Lid

2шт.

15

87235C1

CHAIN

24 Links, Basket Door Upper

2шт.

17

232530A3

PLATE

Not Part Of The Basket Lid

1шт.

17a

280631A1

PLATE

Front Corner, Left Hand Side

1шт.

18

248857A1

STRAP

Basket Extension

2шт.

19

243203A1

PLATE

Basket Top Lock

2шт.

20

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

2шт.

21

A33497

LINCH PIN,4.76mm OD Pin

2шт.

22

243131A2

PLATE

Basket Lock Keeper

2шт.

23

420-2624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2; 8

2шт.

24

313458A1

SPACER

2шт.

25

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

26

231-4146

NUT,3/8"-16, GB

2шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

11шт.

29

231-5146

FLANGE NUT,3/8"-16

12шт.

30

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

12шт.

31

431622A1

CHAIN (AG)

5 links, Cut From 87235C1

1шт.

32

495-81143

WASHER,13/32" x 1 1/2" x .120"

12шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
