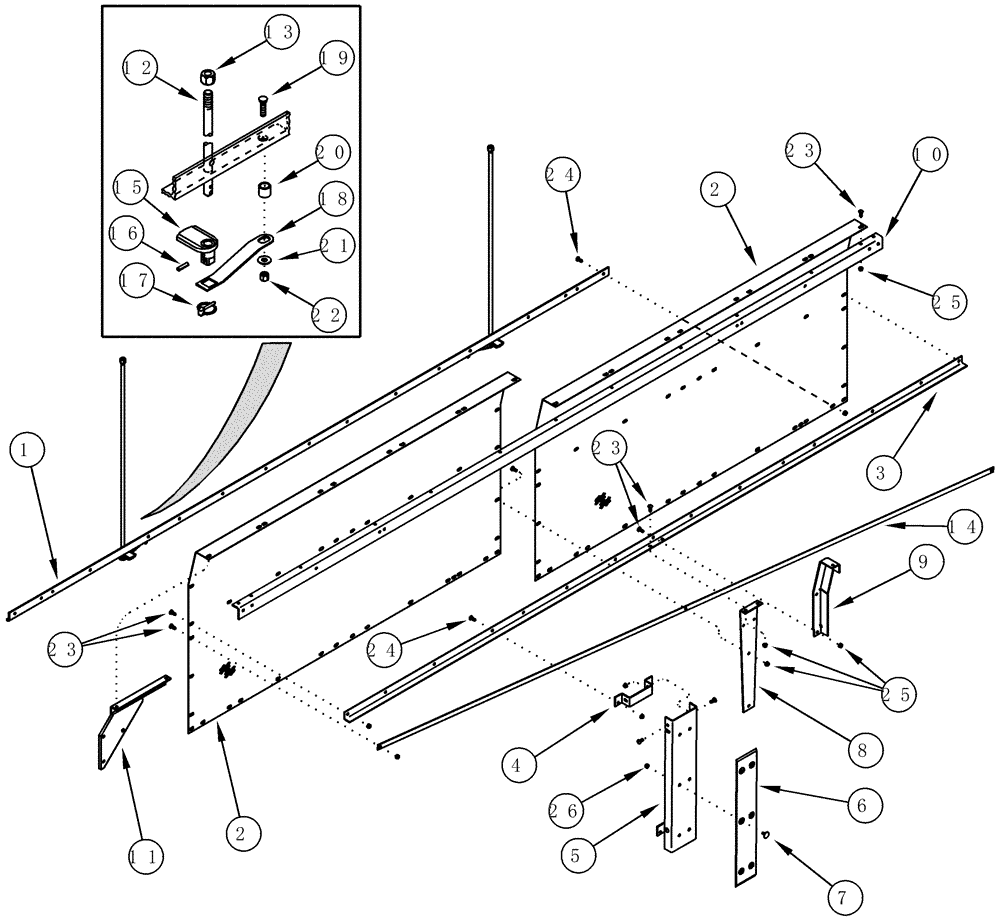

Запчасти Case IH CPX610 (09D-04) - LID, BASKET - RIGHT HAND WALL (16) - BASKET

1

298190A1

ANGLE

Left, Right Side

1шт.

2

248853A1

SHEET

Left, Right Side, Serial Range: -JJC0250151

2шт.

2

87434519

SHEET

Left, Right Side, Start Serial: JFG010501

2шт.

3

248852A1

ANGLE

Left, Right Side

1шт.

4

183315A1

SUPPORT

Lid Guide

2шт.

5

183316A1

CHANNEL

Lid Guide, Long

1шт.

6

183347A2

BAR

Compactor Wear

1шт.

7

278738A1

BOLT

5/16 x 1

6шт.

8

245271A2

ANGLE

Center Tie

1шт.

9

199815A2

ANGLE

Basket Side, Center Support

1шт.

10

248851A1

ANGLE

Basket Grate Support

1шт.

11

239472A2

ANGLE

Basket Lid Cylinder Anchor

1шт.

12

230404A3

ROD

Basket Top Guide

2шт.

13

231-41110

LOCK NUT,5/8"-11, GB

2шт.

14

248857A1

STRAP

Basket Extension

1шт.

15

243203A1

PLATE

Basket Top Lock

2шт.

16

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

2шт.

17

A33497

LINCH PIN,4.76mm OD Pin

2шт.

18

243131A2

PLATE

Basket Lock Keeper

2шт.

19

420-2624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2; 8

2шт.

20

313458A1

SPACER

2шт.

21

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

22

231-4146

NUT,3/8"-16, GB

2шт.

24

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

11шт.

25

231-5146

FLANGE NUT,3/8"-16

15шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
